Same model may have multiple batches, images only for reference.

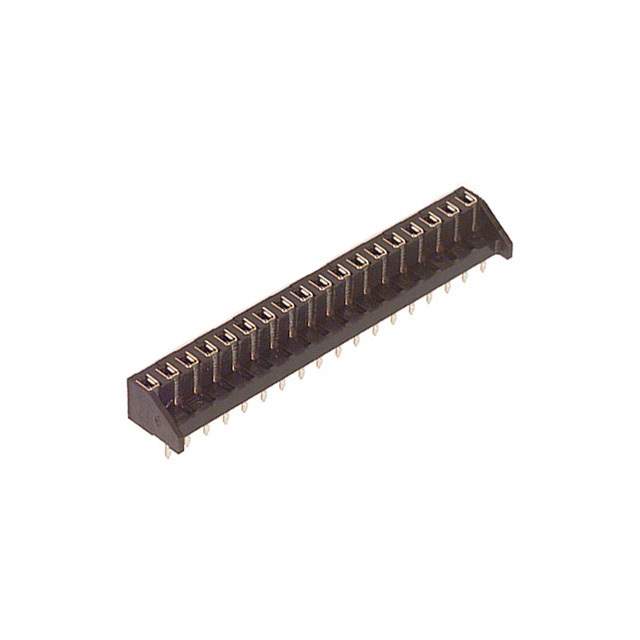

MDF7-18S-2.54DSA Real Image
Same model may have multiple batches, images only for reference.

MDF7-18S-2.54DSA

Part No MDF7-18S-2.54DSA
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 18POS 0.1 TIN PCB
Datasheet
MDF7-18S-2.54DSA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 18 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin
Manufacturer Hirose Electric Co Ltd
Series MDF7
Package Bulk
Part Status Obsolete
Operating Temperature Range -35°C ~ 85°C
Mounting Through Hole
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number *MDF7-18S-2.54DSA, H2563
Quantity per package 100
Popularity High
Supply and Demand Status Balance
Win Source Part Number 926910-MDF7-18S-2.54DSA
Ultra Librarian 3D Model Ultra Librarian MDF7-18S-2.54DSA CAD Model

Description

The MDF7-18S-2.54DSA is an 18 position receptacle, bottom entry connector manufactured by Hirose Electric Co Ltd.

  • Operating Temperature Range: -35°C ~ 85°C
  • Package: Bulk
  • Quantity: 100
  • Supply and Demand: Balanced
  • Part Status: Obsolete
