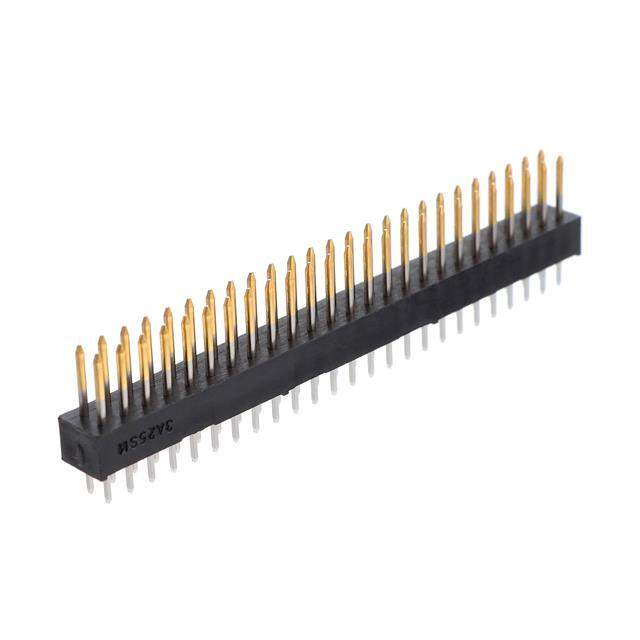

Same model may have multiple batches, images only for reference.

HIF3H-50PB-2.54DSA(61)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HIF3H-50PB-2.54DSA(61)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 50POS 2.54MM / Connector Header Through Hole 50 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	HIF3H
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	50
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.276" (7.00mm)
Contact Length - Post	0.138" (3.50mm)
Overall Contact Length	0.591" (15.00mm)
Insulation Height	0.177" (4.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	200V
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	HIF3
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	26-HIF3H-50PB-2.54DSA(61),618-0210-0-61
Standard Package	50
Win Source Part Number	1010002-HIF3H-50PB-2.54DSA(61)
Ultra Librarian 3D Model	Ultra Librarian HIF3H-50PB-2.54DSA(61) CAD Model

Alternative Products

Description

The HIF3H-50PB-2.54DSA(61) from Hirose Electric Co Ltd is a rectangular connector header that is ideal for board to cable/wire applications.

Positions: 50
Contact Type: Male Pin
Configuration: 2-Row
Voltage Rating: 200V
Insulation Material: Polybutylene Terephthalate (PBT)
