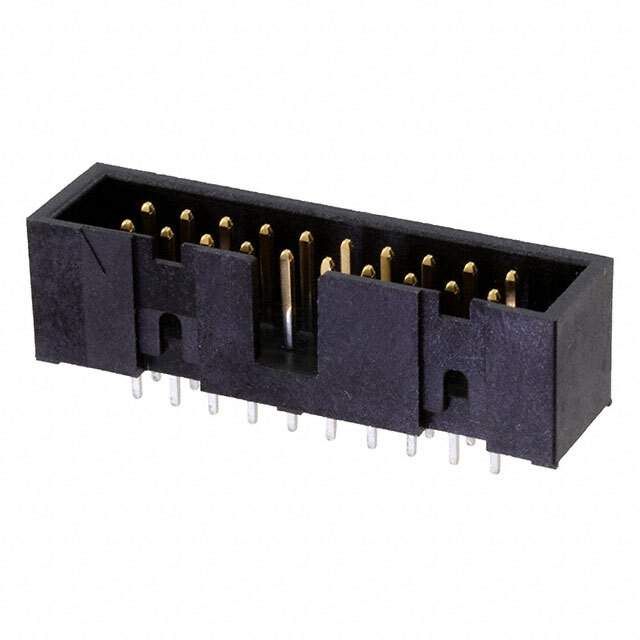

HIF3FC-20PA-2.54DSA(71) Real Image
Same model may have multiple batches, images only for reference.

HIF3FC-20PA-2.54DSA(71)

Part No HIF3FC-20PA-2.54DSA(71)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2.54MM / Connector Header Through Hole 20 position 0.100" (2.54mm)
Datasheet
HIF3FC-20PA-2.54DSA(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series HIF3FC
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.350" (8.89mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Voltage Rating 200V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number HIF3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names HIF3FC-20PA-2.54DSA(71)-ND,H126229,616-0164-2-71
Standard Package 90
Win Source Part Number 1230042-HIF3FC-20PA-2.54DSA(71)
Ultra Librarian 3D Model Ultra Librarian HIF3FC-20PA-2.54DSA(71) CAD Model

Description

The HIF3FC-20PA-2.54DSA(71) is a 20-position male pin header connector that features a keying slot.

  • Position Count: 20
  • Style: Board-to-Board or Cable
  • Shrouding: Shrouded with 4 Walls
  • Contact Material: Brass
  • Contact Finish (Mating): Gold
  • Post Finish: Tin
  • Post Finish Thickness: 78.7μin
  • Pitch: 0.100" (2.54mm)
  • Contact Length (Mating): 0.236" (6.00mm)
  • Contact Length (Post): 0.110" (2.79mm)
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 200V
  • Operating Temperature: -55°C to 85°C
  • Mounting: Through-Hole
  • Fastening Type: Push-Pull
