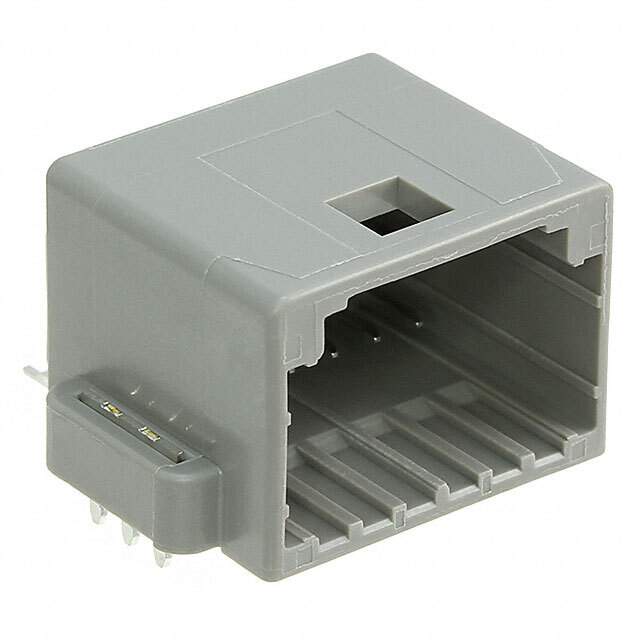

GT25-12DP-2.2H

Part No GT25-12DP-2.2H
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 12POS 2.2MM / Metal holddowns to solder by reflow are used instead of screws for PCB mounting.
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.220" (5.59mm)
Insulation Height 0.500" (12.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyphenylene Sulfide (PPS)
Features Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Insulation Color Gray
Current Rating (Amps) 3A
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807189-GT25-12DP-2.2H
Ultra Librarian 3D Model Ultra Librarian GT25-12DP-2.2H CAD Model

Description

GT25-12DP-2.2H from Hirose Electric Co Ltd is a rectangular connector used in designs that need compact, reliable board-to-board or cable-interconnect solutions, depending on the exact series configuration. Engineers typically evaluate parts in this category for signal routing, modular assemblies, industrial equipment, automotive-adjacent electronics, and embedded systems where consistent mechanical mating and dependable electrical connection are important. Hirose is widely recognized for connector quality and integration support, which makes this part relevant for both new product development and maintenance sourcing. Because the exact lifecycle status for GT25-12DP-2.2H is listed as unknown, procurement and design teams should treat long-term availability carefully and confirm current production status directly with Hirose or authorized channels before committing it into new programs. RoHS compliance information is not available in the provided data, so engineers should verify environmental compliance, material declarations, and any applicable exemptions through the official datasheet or manufacturer documentation.
