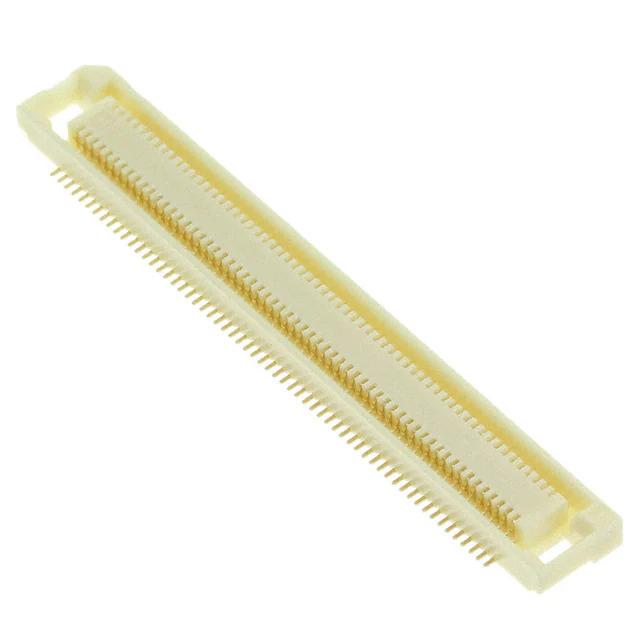

FX8-120S-SV(21)

Name: FX8-120S-SV(21)
Brand: Hirose Electric Co Ltd
SKU: 1364447
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FX8-120S-SV(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 120POS SMD GOLD / 120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet	FX8-120S-SV(21) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	FunctionMax™ FX8
Package	Tube
Product Status	Active
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	120
Pitch	0.024" (0.60mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	-
Mated Stacking Heights	3mm, 4mm
Height Above Board	0.089" (2.26mm)
Base Product Number	FX8
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364447-FX8-120S-SV(21)
Ultra Librarian 3D Model	Ultra Librarian FX8-120S-SV(21) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd FunctionMax™ FX8 is a rectangular connector array designed for board-to-board connections.

Series: FunctionMax™ FX8
Connector Type: Receptacle, Center Strip Contacts
Number of Positions: 120
Number of Rows: 2
Pitch: 0.024" (0.60mm)
Mated Stacking Height: 3mm, 4mm
Mounting Type: Surface Mount
Height Above Board: 0.089" (2.26mm)
Contact Finish: Gold
Product Status: Active
Application: Mezzanine
Packaging: Tube
