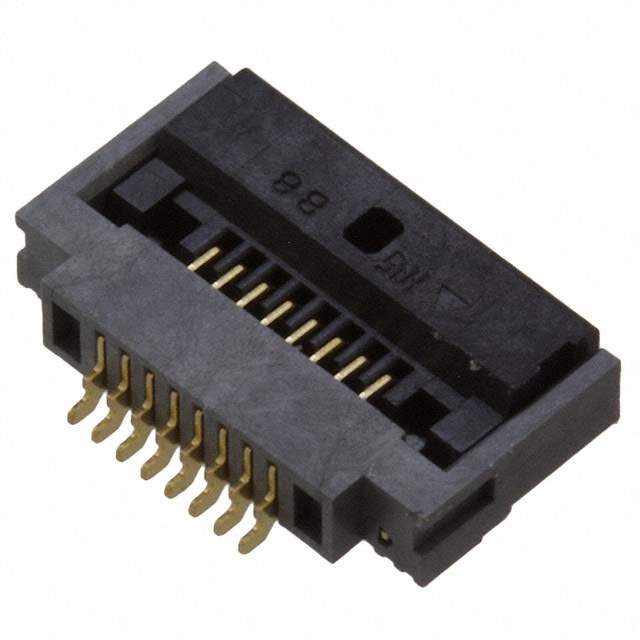

The Hirose Electric Co Ltd 1038834-FH52-8S-0.5SH(99) connector is a surface mount device (SMD) that has 8 positions with a pitch of 0.020" (0.50mm).

• Mounting Type: Surface Mount (SMD)
• Positions: 8
• Pitch: 0.020" (0.50mm)
• Current Rating: 0.5A
• Cable End Type: Tabbed
• Contact Finish: Gold
• Contact Finish Thickness: 1.25μin (0.03μm)
• Locking Feature: Flip Lock
• Flat Flex Type: FFC, FPC
• FFC, FCB Thickness: 0.30mm
• Height Above Board: 0.079" (2.00mm)
• Housing Material: Liquid Crystal Polymer (LCP), Halogen-Free
• Material Flammability Rating: UL94 V-0
• Actuator Material: Liquid Crystal Polymer (LCP), Halogen-Free
• Housing Color: Gray
• Actuator Color: Black
• Operating Temperature Range: -40°C to 105°C
• Mating Cycle: 20
