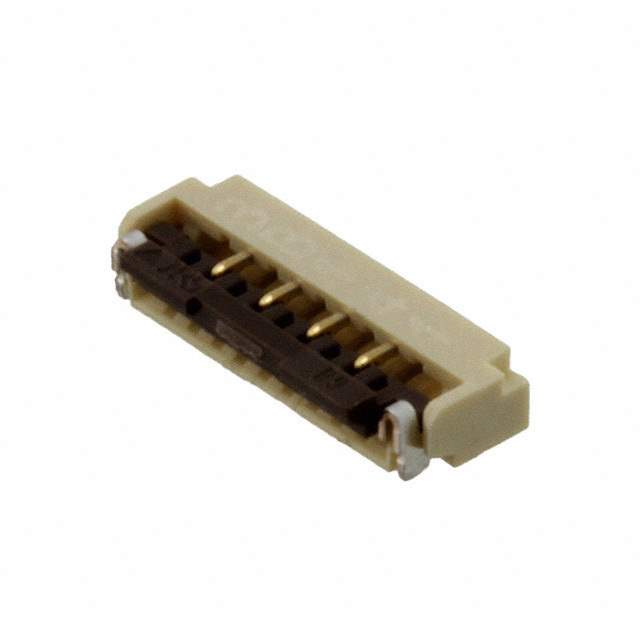

FH33-4S-1SH(10) Real Image
Same model may have multiple batches, images only for reference.

FH33-4S-1SH(10)

Part No FH33-4S-1SH(10)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 4POS 1.00MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Flat Flex Type FFC, FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 4
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.047" (1.20mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness Flash
Mating Cycles 20
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807271-FH33-4S-1SH(10)
Ultra Librarian 3D Model Ultra Librarian FH33-4S-1SH(10) CAD Model

Description

The Hirose Electric Co Ltd 807271-FH33-4S-1SH(10) is a surface mount connector manufactured by Hirose Electric Co Ltd with balanced supply and demand.

  • Mounting Style: Surface Mount, Right Angle
  • Application: Flat Flex Cables (FFC) and Flat Flexible Printed Circuits (FPC)
  • ZIF Feature: Yes
  • Lock Type: Flip Lock
  • Cable End Type: Tapered
  • Positions: 4
  • Pitch: 0.039" (1.00mm)
  • Height Above Board: 0.047" (1.20mm)
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 50V
  • FFC, FCB Thickness: 0.30mm
  • Housing & Actuator Material: Polyamide (PA), Nylon
  • Housing Material Flammability Rating: UL94 V-0
  • Packaging: Reel
  • Manufacturer Pack Quantity: 5,000
  • MSL Level: 1 (unlimited)
  • Current Rating: 0.5A
