Same model may have multiple batches, images only for reference.

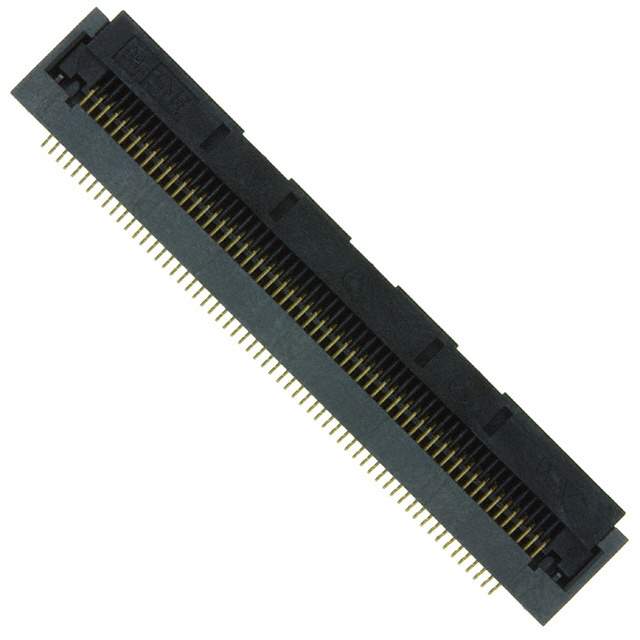

FH28-60S-0.5SH(05) Real Image
Same model may have multiple batches, images only for reference.

FH28-60S-0.5SH(05)

Part No FH28-60S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 60POS 0.50MM R/A
Datasheet
FH28-60S-0.5SH(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 60
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.100" (2.54mm)
Locking Feature Rotary Lock
Cable End Type Tabbed
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Win Source Part Number 1038769-FH28-60S-0.5SH(05)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FH28-60S-0.5SH(05) CAD Model

Description

The FH28-60S-0.5SH(05) is a 60-position solder retention and zero insertion force (ZIF) FFC/FPC connector from Hirose Electric Co Ltd, with a pitch of 0.020" (0.50mm).

  • Positions: 60
  • Retention: Solder Retention
  • Insertion Force: Zero Insertion Force (ZIF)
  • Connector Type: FFC/FPC
  • Manufacturer: Hirose Electric Co Ltd
  • Pitch: 0.020" (0.50mm)
  • Contact Finish: Gold
  • Lock: Rotary Lock
  • Cable End Type: Tabbed
  • Connector/Contact Type: Contacts, Bottom
  • FFC/FCB Thickness: 0.30mm
  • Housing and Actuator Materials: Liquid crystal polymer (LCP) (Halogen-free)
  • Material Flammability Rating: UL94 V-0
  • Mounting: Surface Mount
  • Angle: Right-angled
  • Height Above Board: 0.100" (2.54mm)
  • Mating Cycle: 20
