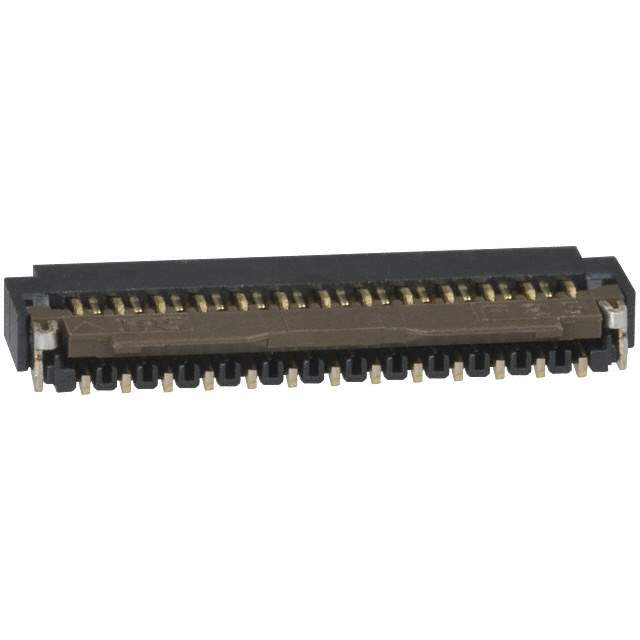

FH26W-25S-0.3SHW(60) Real Image
Same model may have multiple batches, images only for reference.

FH26W-25S-0.3SHW(60)

Part No FH26W-25S-0.3SHW(60)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC/FFC 25POS .3MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Flat Flex Type FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 25
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 HB
Current Rating (Amps) 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802675-FH26W-25S-0.3SHW(60)
Ultra Librarian 3D Model Ultra Librarian FH26W-25S-0.3SHW(60) CAD Model

Description

The FH26W-25S-0.3SHW(60) from Hirose Electric Co Ltd is a surface mount, right angle connector.

  • Positions: 25
  • Pitch: 0.012" (0.30mm)
  • Insertion Force: Zero Insertion Force (ZIF)
  • Termination: Solder
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Cable Type: FPC Flat Flex
  • Cable Thickness: 0.20mm
  • Locking Mechanism: Flip Lock
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Actuator Material: Polyamide (PA), Nylon
  • Voltage Rating: 30V
  • Current Rating: 0.2A
  • Height Above Board: 0.039" (1.00mm)
  • Housing Color: Black
  • Temperature Range: -55°C to 85°C
  • Mating Cycles: 10
  • Manufacturer Pack Quantity: 5,000
