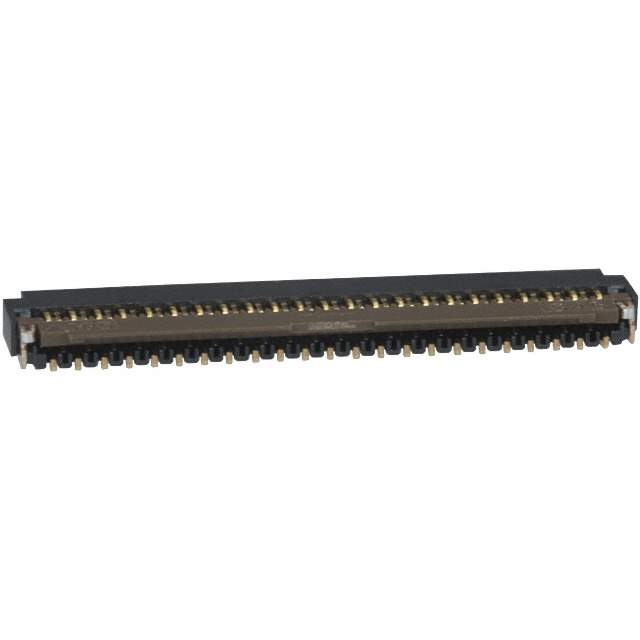

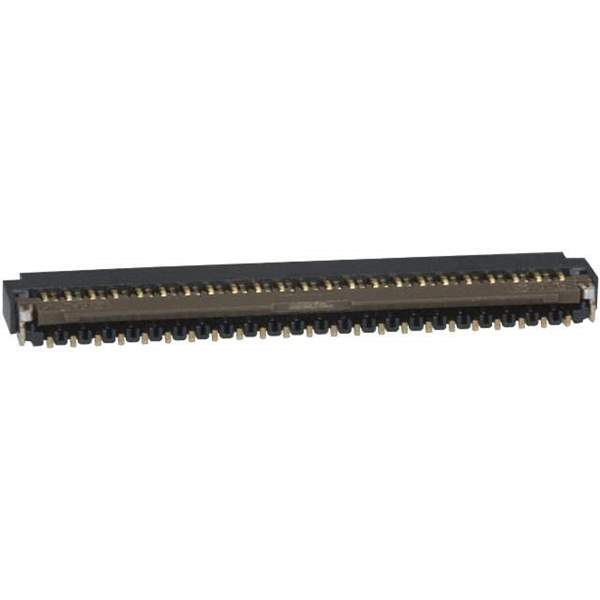

FH26-45S-0.3SHW(05) Real Image
Same model may have multiple batches, images only for reference.

FH26-45S-0.3SHW(05)

Part No FH26-45S-0.3SHW(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FPC Connector SKT 45 POS 0.3mm Solder RA SMD T/R / CONN FPC BOTTOM 45POS 0.30MM R/A
Datasheet
FH26-45S-0.3SHW(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 45
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Win Source Part Number 1038747-FH26-45S-0.3SHW(05)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Family Name FH26
Introduction Date August 31, 2004
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian FH26-45S-0.3SHW(05) CAD Model

Description

The Hirose Electric Co Ltd FH26-45S-0.3SHW(05).

  • Win Source Part Number: 1038747-FH26-45S-0.3SHW(05)
  • Feature: Zero insertion force (ZIF)
  • Suitable for: Use in various electronic applications
  • Voltage Rating: 30V
  • Current Rating: 0.2A
  • Temperature Range: -55°C to 85°C
