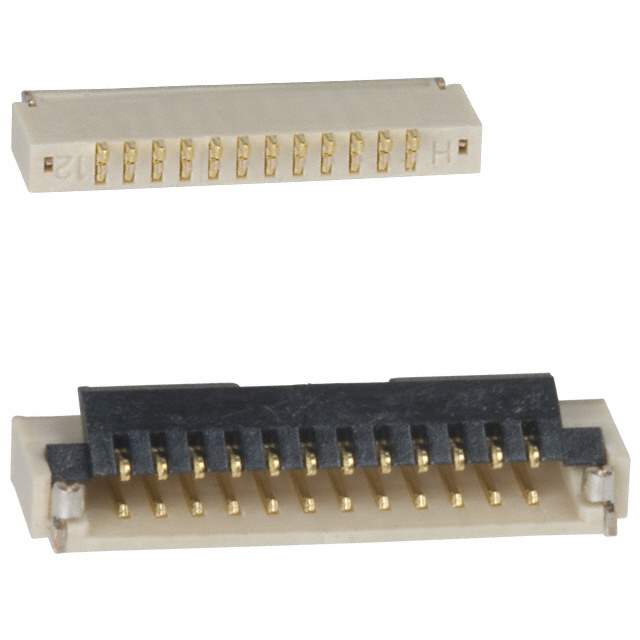

FH19SC-12S-0.5SH(09)

Name: FH19SC-12S-0.5SH(09)
Brand: Hirose Electric Co Ltd
SKU: 994049
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FH19SC-12S-0.5SH(09)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 12POS 0.50MM R/A / 12 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet	FH19SC-12S-0.5SH(09) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Hirose Electric Co Ltd
Series	FH19SC
Package	Tape & Reel
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	12
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.037" (0.95mm)
Locking Feature	Flip Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Housing Color	Beige
Actuator Color	Black
Mating Cycles	20
Base Product Number	FH19
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	580-0512-1-09,H125828DKR,H125828TR,FH19SC-12S-0.5SH(09)-ND,H125828CT
Standard Package	5,000
Win Source Part Number	994049-FH19SC-12S-0.5SH(09)
Ultra Librarian 3D Model	Ultra Librarian FH19SC-12S-0.5SH(09) CAD Model

Alternative Products

Description

The FH19SC-12S-0.5SH(09) is a flat flexible connector from Hirose Electric Co Ltd.

Series: FH19SC
Type: FFC / FPC
Pitch: 0.020 inches
Contact Finish: Gold
Packaging: Tape and Reel
Standard Package: 5,000
MSL Level: 1 (Unlimited)
