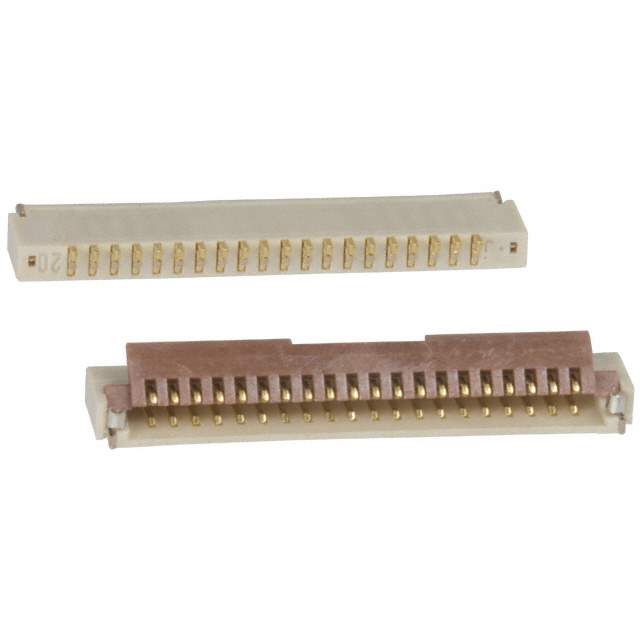

Same model may have multiple batches, images only for reference.

FH19C-20S-0.5SH(05)

Name: FH19C-20S-0.5SH(05)
Brand: Hirose Electric Co Ltd
SKU: 453779
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FH19C-20S-0.5SH(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 20POS 0.50MM R/A
Datasheet	FH19C-20S-0.5SH(05) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Packaging	Reel - TR
Status	Active
Flat Flex Type	FFC, FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	20
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.036" (0.90mm)
Locking Feature	Flip Lock
Cable End Type	Tapered
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-55°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Housing Color	Beige
Actuator Color	Brown
Mating Cycles	20
Win Source Part Number	1038728-FH19C-20S-0.5SH(05)
Popularity	Medium
Supply and Demand Status	Sufficient
Application Field	Used in Industrial
Quantity per package	5k pcs
Ultra Librarian 3D Model	Ultra Librarian FH19C-20S-0.5SH(05) CAD Model

Alternative Products

Description

The FH19C-20S-0.5SH(05) from Hirose Electric Co Ltd is a 20-position FFC/FPC connector with a pitch of 0.020" (0.50mm).

Pitch: 0.020" (0.50mm)
Features: Solder Retention, Zero Insertion Force (ZIF), Flip Lock
Connector/Contact Type: Contacts, Bottom
FFC/FCB Thickness: 0.20mm
Housing Material: Liquid Crystal Polymer (LCP)
Actuator Material: Polyphenylene Sulfide (PPS)
Flammability Rating: UL94 V-0
Housing Color: Beige
Application: Industrial
Operating Temperature: -55°C to 85°C
Mounting: Surface Mount, Right Angle
Packaging: Reel (5k pcs)
