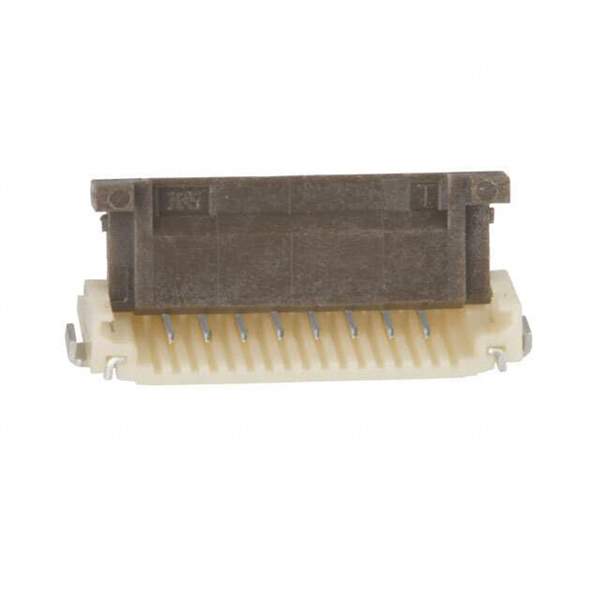

FH12-8S-1SH Real Image

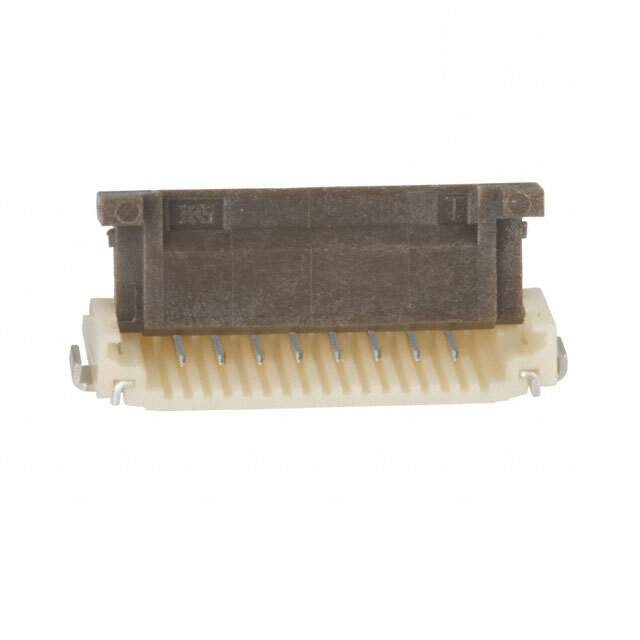

Same model may have multiple batches, images only for reference.

FH12-8S-1SH

Part No FH12-8S-1SH
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description 0.5mm and 1mm Pitch Connectors For FPC/FFC | CONN FFC BOTTOM 8POS 1.00MM R/A
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Cut Tape (CT)
Status Obsolete
Flat Flex Type FFC, FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 8
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin-Lead
Dielectric Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1174231-FH12-8S-1SH
Manufacturer Homepage www.hirose-connectors.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FH12-8S-1SH CAD Model

Description

The Hirose Electric Co Ltd FH12-8S-1SH connector is a through-hole component with a right-angle mounting style. It has a pitch of 0.039" (1.00mm) and a height above board of 0.079" (2.00mm).

  • Mounting Style: Right-Angle
  • Pitch: 0.039" (1.00mm)
  • Height Above Board: 0.079" (2.00mm)
  • Positions: 8
  • For Use With: FFC and FPC flat flex types
  • Locking Feature: Flip Lock
  • Actuator Material: polyphenylene sulfide (PPS)
  • Component Status: Obsolete
  • Supply and Demand Status: Limited
