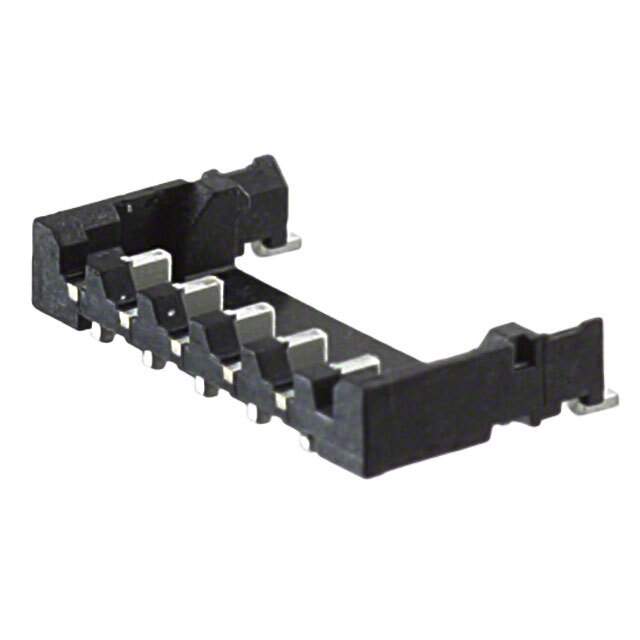

DF57H-5P-1.2V(21) Real Image
Same model may have multiple batches, images only for reference.

DF57H-5P-1.2V(21)

Part No DF57H-5P-1.2V(21)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 5POS 1.2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features Connector Header Surface Mount 5 position 0.047" (1.20mm)
Manufacturer Hirose Electric Co Ltd
Series DF57H
Package Reel - TR
Operating Temperature Range -35°C ~ 85°C
Mounting Surface Mount
Family Name DF57
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number H12107DKR, H12107CT, DF57H5P12V21, 666-0107-5-21, H12107TR
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868599-DF57H-5P-1.2V(21)
Ultra Librarian 3D Model Ultra Librarian DF57H-5P-1.2V(21) CAD Model

Description

The DF57H connector header surface mount 5 position 0.047" (1.20mm) component from Hirose Electric Co Ltd is a connector with a series name of DF57H.

  • Series Name: DF57H
  • Operating Temperature Range: -35°C ~ 85°C
  • Package: Reel - TR
  • Mounting Type: Surface Mount
  • Family: DF57
  • Categories: Connectors
  • Supply and Demand Status: Limited
  • Quantity per Package: 5000
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 25 weeks
  • HTSUS: 8536.69.4040
  • Other Part Numbers: H12107DKR, H12107CT, DF57H5P12V21, 666-0107-5-21, H12107TR
  • Manufacturer: Hirose Electric Co Ltd
