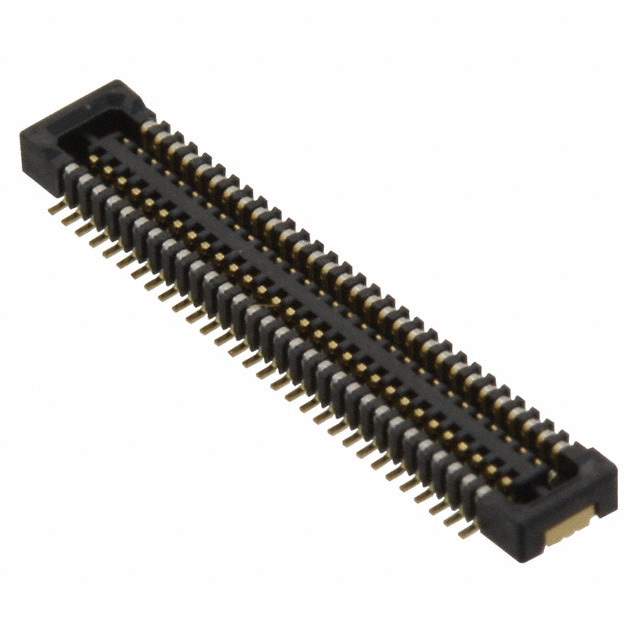

DF37NB-60DS-0.4V(75)

Part No DF37NB-60DS-0.4V(75)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 60POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Connector Type Receptacle, Center Strip Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Style SMD
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 3.94μin (0.10μm)
Mated Stacking Heights 0.98mm
Height Above Board 0.038" (0.97mm)
Manufacturer Pack Quantity 8,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803267-DF37NB-60DS-0.4V(75)
Ultra Librarian 3D Model Ultra Librarian DF37NB-60DS-0.4V(75) CAD Model

Description

DF37NB-60DS-0.4V(75) from Hirose Electric Co Ltd is a fine-pitch rectangular connector receptacle designed for compact board-to-board interconnect applications where space, alignment, and signal density matter. With 60 positions, 0.40 mm pitch, dual-row construction, and low profile stacking, it fits designs such as mobile electronics, industrial control modules, compact embedded systems, portable instrumentation, and other high-density PCB assemblies. Engineers typically select this series for miniature layouts that still require reliable gold-finished contacts and SMD assembly efficiency, while the solder retention feature supports production robustness. From a market perspective, the supplied status indicates balanced supply and demand, which is generally favorable for ongoing procurement planning. However, the official lifecycle status is listed as unknown, so designers should confirm current manufacturer support before committing to long-term programs. RoHS compliance information is not explicitly provided in the supplied specifications, so compliance status should be treated as information not available until verified through the official datasheet, manufacturer declaration, or authorized sourcing channel.
