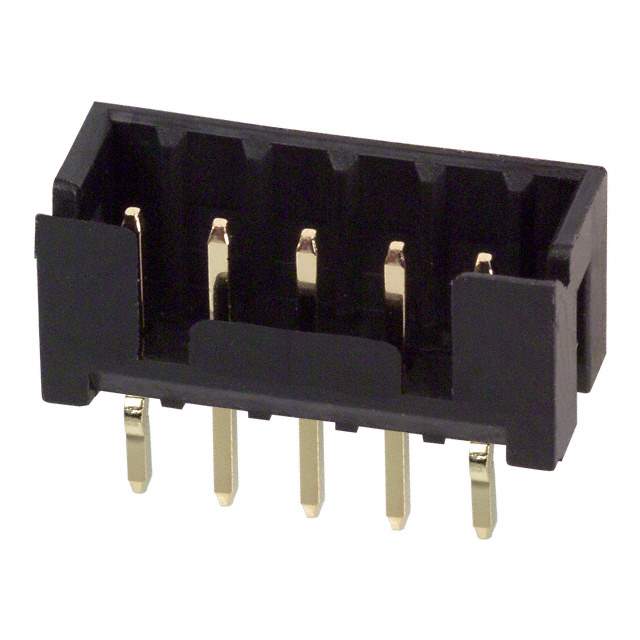

Same model may have multiple batches, images only for reference.

DF3-5P-2DSA(01)

Name: DF3-5P-2DSA(01)
Brand: Hirose Electric Co Ltd
SKU: 868516
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF3-5P-2DSA(01)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 5POS 2MM
Datasheet	DF3-5P-2DSA(01) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	26 Weeks
Features	Connector Header Through Hole 5 position 0.079" (2.00mm)
Manufacturer	Hirose Electric Co Ltd
Series	DF3
Package	Bulk
Operating Temperature Range	-55°C ~ 105°C
Mounting	Through Hole
Family Name	DF3-5
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	*DF3-5P-2DSA(01), 543-0020-7-01, DF35P2DSA01, H3924
Quantity per package	100
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	868516-DF3-5P-2DSA(01)
Ultra Librarian 3D Model	Ultra Librarian DF3-5P-2DSA(01) CAD Model

Alternative Products

Description

The DF3-5P-2DSA(01) connector header from Hirose Electric Co Ltd is a great choice for various applications.

Series: DF3
Operating Temperature Range: -55°C to 105°C
Mounting Style: Through-hole
Positions: 5
Pitch: 0.079" (2.00mm)
