Same model may have multiple batches, images only for reference.

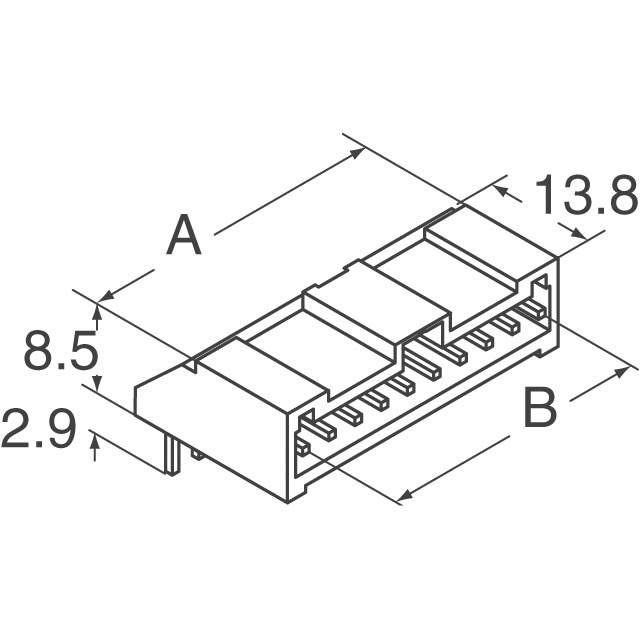

DF1E-3P-2.5DS(36) Real Image
Same model may have multiple batches, images only for reference.

DF1E-3P-2.5DS(36)

Part No DF1E-3P-2.5DS(36)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER R/A 3POS 2.5MM / Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm)
Datasheet
DF1E-3P-2.5DS(36) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF1E
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 3
Number of Rows 1
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.315" (8.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Material Brass
Insulation Material Polyamide (PA) , Nylon
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Base Product Number DF1E
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337077-DF1E-3P-2.5DS(36)
Ultra Librarian 3D Model Ultra Librarian DF1E-3P-2.5DS(36) CAD Model

Description

The DF1E series header male pin connector is a 3-position connector with a 0.098-inch pitch. This product is from Hirose Electric Co Ltd.

  • Series: DF1E
  • Pitch: 0.098" (2.50mm)
  • Number of Positions: 3
  • Fastening Type: Latch Holder
  • Termination: Solder
  • Contact Material: Brass
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Insulation Material: Polyamide (PA), Nylon
  • Current Rating (Amps): 3A
  • Height Above Board: 0.315" (8.00mm)
  • Mounting Type: Through Hole, Right Angle
  • Board to Cable/Wire: Yes
  • Packaging: Bulk
  • Standard Package: 100
  • Operating Temperature: -35°C ~ 85°C
