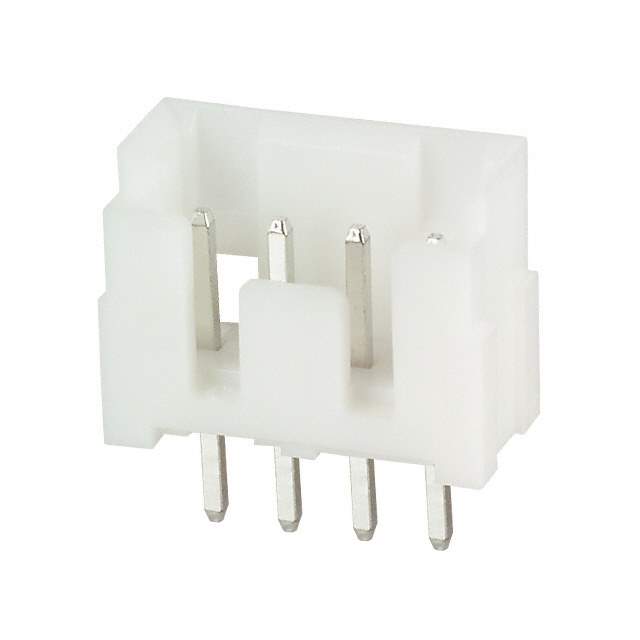

DF1B-4P-2.5DSA Real Image1 DF1B-4P-2.5DSA Real Image2
Same model may have multiple batches, images only for reference.
DF1B-4P-2.5DSA Real Image1 DF1B-4P-2.5DSA Real Image2
DF1B-4P-2.5DSA Real Image1 DF1B-4P-2.5DSA Real Image2
Same model may have multiple batches, images only for reference.

DF1B-4P-2.5DSA

Part No DF1B-4P-2.5DSA
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 2.5MM / Connector Header Through Hole 4 position 0.098" (2.50mm)
Datasheet
DF1B-4P-2.5DSA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF1B
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 4
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length 0.417" (10.60mm)
Insulation Height 0.374" (9.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post -
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Keying Slot
Temperature Range - Operating -35°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) -
Voltage Rating 250V
Mated Stacking Heights 14mm
Contact Finish Thickness - Post -
Applications -
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 100 pcs
Win Source Part Number 1381877-DF1B-4P-2.5DSA
Ultra Librarian 3D Model Ultra Librarian DF1B-4P-2.5DSA CAD Model

Description

The DF1B-4P-2.5DSA is a rectangular connector header with male pins. DF1B-4P-2.5DSA is from Hirose Electric Co Ltd.

  • Number of Positions: 4
  • Keying Type: Keying Slot
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Voltage Rating: 250V
  • Mated Stacking Heights: 14mm
  • Contact Material: Brass
  • Flammability Rating: UL94 V-0
  • Packaging: Bulk
  • Standard Package: 100 pcs
  • Mounting Type: Free Hanging (In-Line)
  • Gender: Male
  • Type: Header
  • Pitch: 0.098" (2.50mm)
  • Housing Color: White
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
