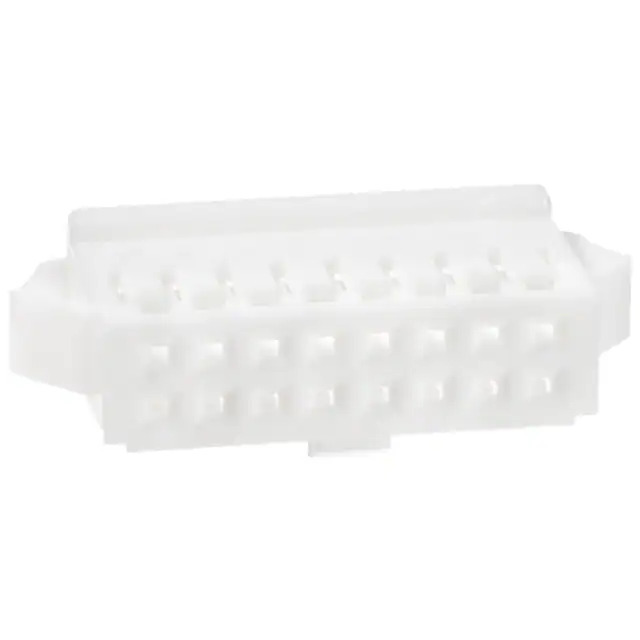

Same model may have multiple batches, images only for reference.

DF1B-16DES-2.5RC

Name: DF1B-16DES-2.5RC
Brand: Hirose Electric Co Ltd
SKU: 1365528
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF1B-16DES-2.5RC
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 16POS 2.50MM / 16 Rectangular Connectors - Housings Receptacle White 0.098" (2.50mm)
Datasheet	DF1B-16DES-2.5RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	Hirose Electric Co Ltd
Series	DF1B
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	16
Pitch	0.098" (2.50mm)
Number of Rows	2
Row Spacing	0.098" (2.50mm)
Mounting Type	Panel Mount, Snap-In
Contact Termination	Crimp, IDC
Fastening Type	Locking Ramp
Color	White
Features	-
Temperature Range - Operating	-35°C ~ 85°C
Note	Contacts Not Included
Base Product Number	DF1B
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4030
Win Source Part Number	1365528-DF1B-16DES-2.5RC
Ultra Librarian 3D Model	Ultra Librarian DF1B-16DES-2.5RC CAD Model

Alternative Products

Description

The DF1B-16DES-2.5RC is a rectangular connector housing from Hirose Electric Co Ltd.

Connector Type: Receptacle
Contact Type: Female Socket
Positions: 16
Rows: 2
Pitch: 0.098" (2.50mm)
Fastening: Locking Ramp
Operating Temperature: -35°C to 85°C
Color: White
Mounting Type: Panel Mount, Snap-In
Contacts Included: No
Product Status: Active
Packaging: Bulk
HTSUS: 8536.69.4030
ECCN: EAR99
