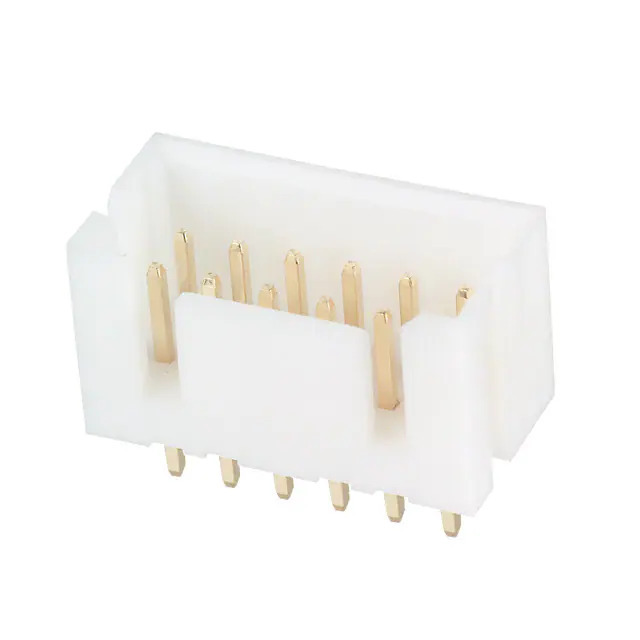

DF1B-12DP-2.5DSA(01) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

DF1B-12DP-2.5DSA(01)

Part No DF1B-12DP-2.5DSA(01)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 2.5MM / Connector Header Through Hole 12 position 0.098" (2.50mm)
Datasheet
DF1B-12DP-2.5DSA(01) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF1B
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.098" (2.50mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length 0.417" (10.60mm)
Insulation Height 0.374" (9.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post -
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Keying Slot
Temperature Range - Operating -35°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) -
Voltage Rating 250V
Mated Stacking Heights 14mm
Contact Finish Thickness - Post -
Applications -
Base Product Number DF1B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362564-DF1B-12DP-2.5DSA(01)
Ultra Librarian 3D Model Ultra Librarian DF1B-12DP-2.5DSA(01) CAD Model

Description

The Hirose Electric Co Ltd DF1B series is a shrouded header connector with a pitch of 0.098" (2.50mm) and 12 positions.

  • Connection Type: Board to Cable/Wire
  • Keying: Keying Slot
  • Fastening Type: Push-Pull
  • Mating Contact Length: 0.177" (4.50mm)
  • Post Contact Length: 0.142" (3.60mm)
  • Overall Contact Length: 0.417" (10.60mm)
  • Insulation Height: 0.374" (9.50mm)
  • Contact Shape: Square
  • Contact Finish: Gold, 8.00μin (0.203μm)
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA) and Nylon
  • Voltage Rating: 250V
  • Flammability Rating: UL94 V-0
  • Package: Bulk
  • Product Status: Active
