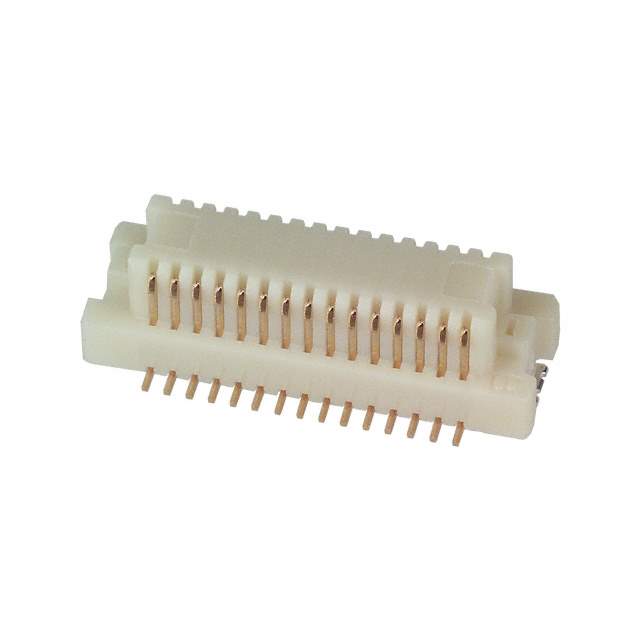

DF15(1.8)-30DS-0.65V(50) Real Image
Same model may have multiple batches, images only for reference.

DF15(1.8)-30DS-0.65V(50)

Part No DF15(1.8)-30DS-0.65V(50)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RECEPT 30POS 1.8MM DUAL SMD
Datasheet
DF15(1.8)-30DS-0.65V(50) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Tube/Rail
Status Obsolete(EOL)
Connector Type Receptacle, Center Strip Contacts
Number of Positions 30
Pitch 0.026" (0.65mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Solder Retention
Contact Finish Gold
Mated Stacking Heights 5mm, 6mm, 8mm
Height Above Board 0.157" (4.00mm)
Win Source Part Number 1032885-DF15(1.8)-30DS-0.65V(50)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DF15(1.8)-30DS-0.65V(50) CAD Model

Description

The DF15(1.8)-30DS-0.65V(50) is a 30-position receptacle connector manufactured by Hirose Electric Co Ltd.

  • Positions: 30
  • Pitch: 0.026" (0.65mm)
  • Features: Board guide and solder retention
  • Applications: Data communication equipment, office automation equipment, and industrial machinery
  • Supply: Limited
  • Status: Obsolete
