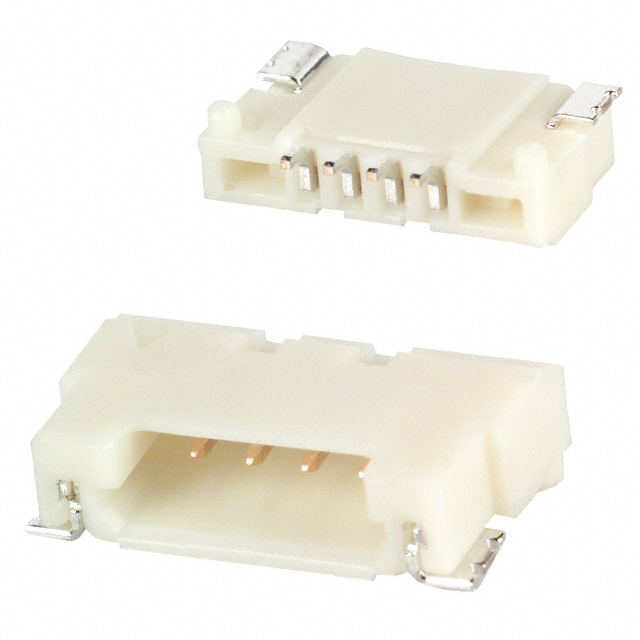

DF14-4P-1.25H(22)

Get a Quote

Part No	DF14-4P-1.25H(22)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	Connector Header Surface Mount, Right Angle 4 position 0.049" (1.25mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	Hirose Electric Co Ltd
Series	DF14
Packaging	Reel - TR
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.087" (2.20mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide, Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150VAC
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	DF14
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1480406-DF14-4P-1.25H(22)
Ultra Librarian 3D Model	Ultra Librarian DF14-4P-1.25H(22) CAD Model
