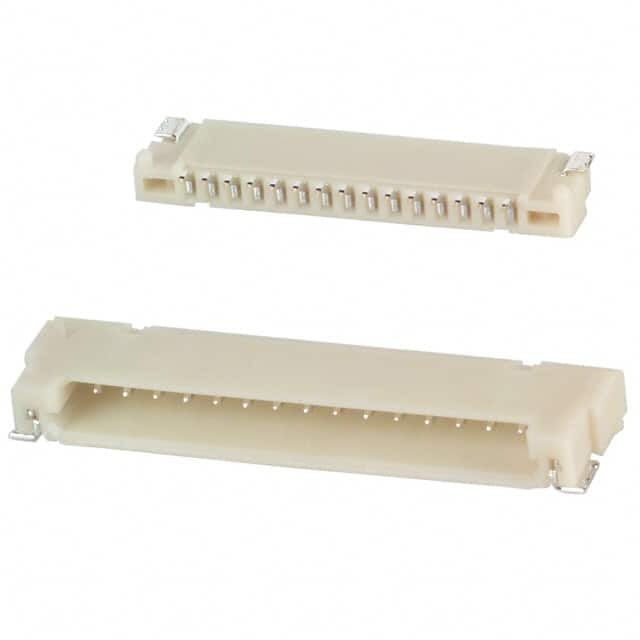

Same model may have multiple batches, images only for reference.

DF14-15P-1.25H(26)

Name: DF14-15P-1.25H(26)
Brand: Hirose Electric Co Ltd
SKU: 868434
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF14-15P-1.25H(26)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 15POS 1.25MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF14
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	15
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.086" (2.20mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Copper
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide, Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	868434-DF14-15P-1.25H(26)
Ultra Librarian 3D Model	Ultra Librarian DF14-15P-1.25H(26) CAD Model

Alternative Products

Description

The DF14-15P-1.25H(26) is a male pin header connector from Hirose Electric Co Ltd.

Series: DF14
Positions: 15
Features: Board Guide and Solder Retention
Connector Type: Header
Contact Type: Male Pin
Mounting Style: Surface Mount and Right Angle
Voltage Rating: 150V
Current Rating: 1A
Contact Material: Brass
Contact Finish: Tin-Copper
Packaging: Tape and Reel
Quantity: 1,000 pieces
Status: Obsolete
