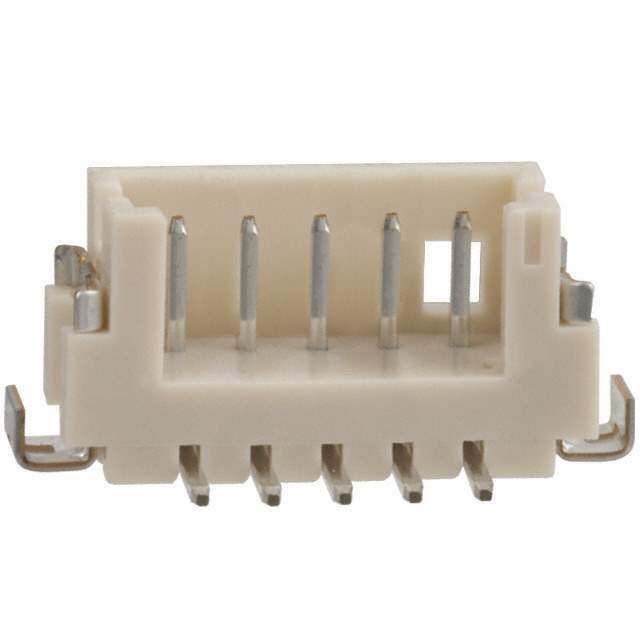

The DF13-5P-1.25V(20) is a connector housing manufactured by Hirose Electric Co. Ltd. It belongs to the DF13 series, which is known for its compact design and reliable performance, making it suitable for various signal and power connection applications in electronic devices.

Applications

• Consumer Electronics: Used in digital cameras, camcorders, and audio equipment.
• Industrial Equipment: Employed in industrial control systems and automation equipment.
• Medical Devices: Utilized in medical equipment requiring reliable connections.
• Office Automation Equipment: Applied in printers, scanners, and copiers.
• Gaming Consoles: Used for internal connections in gaming consoles.

Features

• Compact Design: Small size allows for high-density mounting.
• 1.25mm Pitch: Fine pitch enables efficient use of board space.
• Secure Locking Mechanism: Ensures a reliable connection, preventing accidental disconnections.
• Surface Mount Technology (SMT): Designed for surface mount soldering, simplifying assembly.
• Durable Construction: Made from high-quality materials for long-term reliability.

Benefits

• Space Saving: Compact design allows for efficient use of board space.
• Reliable Connection: Secure locking mechanism ensures a stable connection.
• Simplified Assembly: SMT design streamlines the assembly process.
• Versatile Application: Suitable for a wide range of signal and power connection applications.
• Long-Term Reliability: Durable construction ensures long-term performance.

Additional Details

The DF13-5P-1.25V(20) housing is typically made from high-temperature thermoplastic materials suitable for reflow soldering. It is designed to accommodate a specific number of contacts (5 in this case), providing both signal and power connectivity. Polarization features are often included to prevent incorrect mating. The operating temperature range generally spans from -25°C to +85°C. The connector is designed for applications where space is limited and reliable connections are required.
