Same model may have multiple batches, images only for reference.

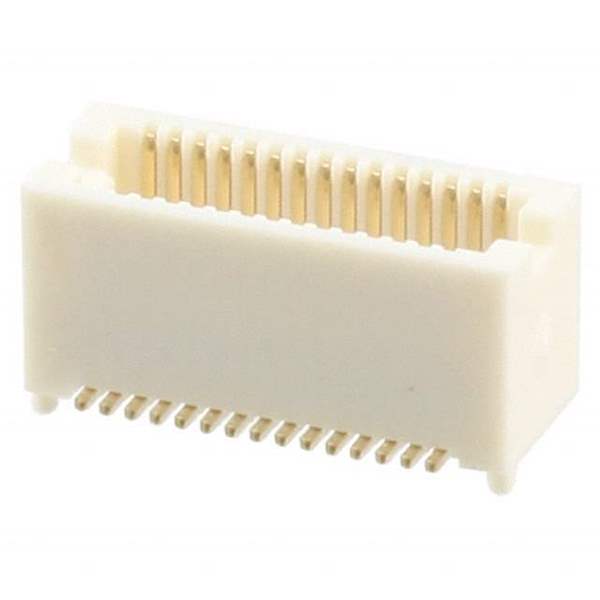

DF12B(5.0)-30DP-0.5V(86) Real Image
Same model may have multiple batches, images only for reference.

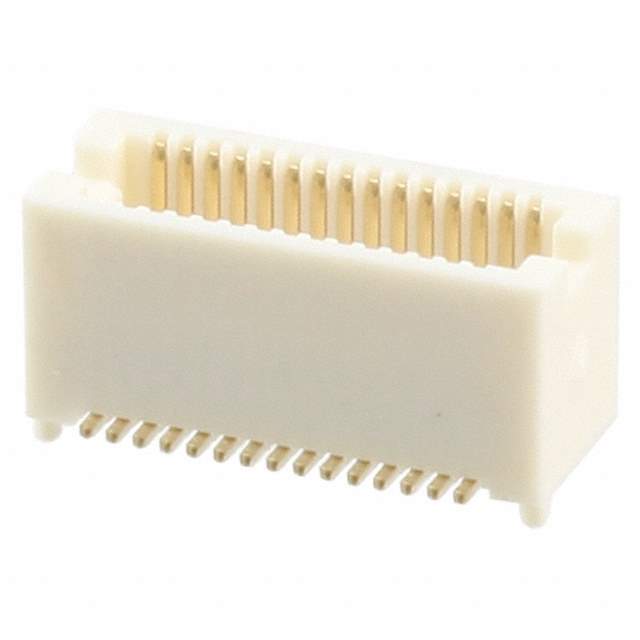

DF12B(5.0)-30DP-0.5V(86)

Part No DF12B(5.0)-30DP-0.5V(86)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 30POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Manufacturer Hirose Electric Co Ltd
Series DF12
Package Reel - TR
Part Status Obsolete
Mounting Surface Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number H11731DKR, H11731TR, 537-0380-0 86, DF12B5030DP05V86, *DF12B(5.0)-30DP-0.5V(86), H11731CT, 537-0380-0-86
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868396-DF12B(5.0)-30DP-0.5V(86)
Ultra Librarian 3D Model Ultra Librarian DF12B(5.0)-30DP-0.5V(86) CAD Model

Description

The Hirose Electric Co Ltd DF12B(5.0)-30DP-0.5V(86) is a 30 position connector header with outer shroud contacts.

  • Series: DF12
  • Mounting: Surface
  • Package: Reel
  • Part Status: Obsolete
  • Supply and Demand Status: Limited
  • RoHS Compliant: Yes
