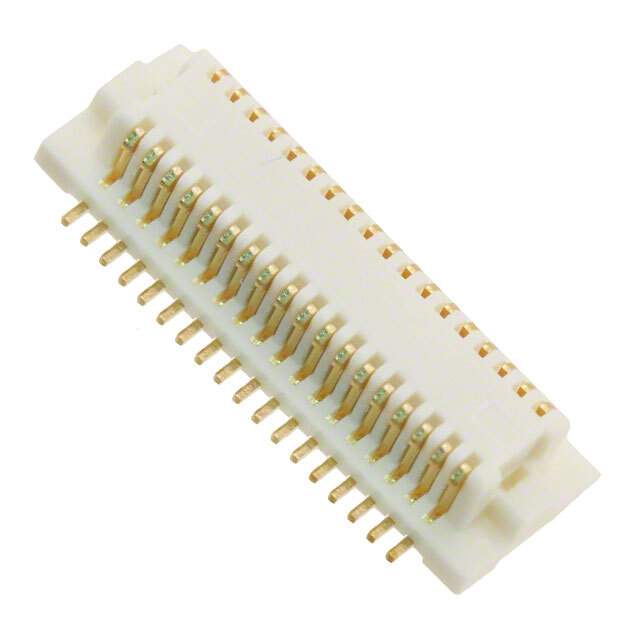

Same model may have multiple batches, images only for reference.

DF12-36DS-0.5V(86)

Name: DF12-36DS-0.5V(86)
Brand: Hirose Electric Co Ltd
SKU: 1350109
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF12-36DS-0.5V(86)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 36POS SMD GOLD / 36 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet	DF12-36DS-0.5V(86) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	DF12
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	36
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Solder Retention
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Mated Stacking Heights	3.5mm, 4mm, 5mm
Height Above Board	0.106" (2.70mm)
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350109-DF12-36DS-0.5V(86)
Ultra Librarian 3D Model	Ultra Librarian DF12-36DS-0.5V(86) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF12 series is a board to board rectangular connector used in mezzanine applications. DF12 is manufactured by Hirose Electric Co Ltd.

Connector Type: Receptacle
Contact Finish - Mating: Gold
Pitch: 0.020" (0.50mm)
Number of Positions: 36
Number of Rows: 2
Height Above Board: 0.106" (2.70mm)
Mounting Type: Surface Mount
Features: Board Guide, Solder Retention
Operating Temperature: -40°C ~ 85°C
ECCN: EAR99
