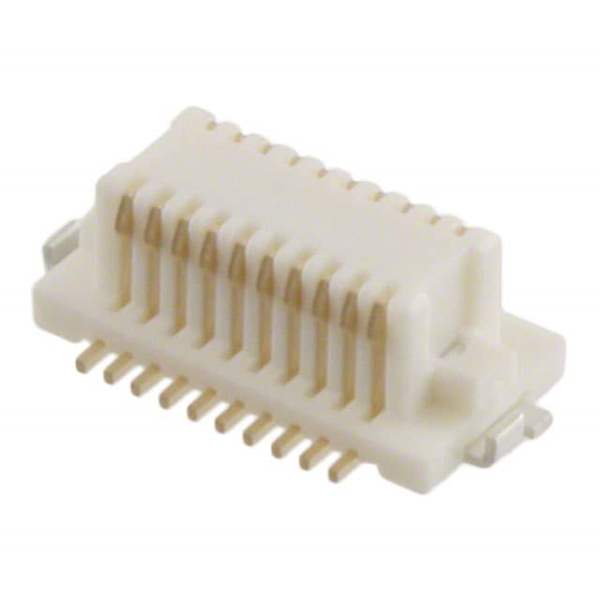

DF12(3.0)-20DS-0.5V(86) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

DF12(3.0)-20DS-0.5V(86)

Part No DF12(3.0)-20DS-0.5V(86)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RECEPT 20POS 3MM SMD 0.5MM
Datasheet
DF12(3.0)-20DS-0.5V(86) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 8μin (0.20μm)
Mated Stacking Heights 3mm
Height Above Board 0.087" (2.20mm)
Win Source Part Number 1032864-DF12(3.0)-20DS-0.5V(86)
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian DF12(3.0)-20DS-0.5V(86) CAD Model

Description

The DF12(3.0)-20DS-0.5V(86) from Hirose Electric is a board-to-board connector.

  • Manufacturer: Hirose Electric
  • Pitch: 0.50mm
  • Positions: 20
  • Height Above Board: 2.20mm
  • Application: SMT
