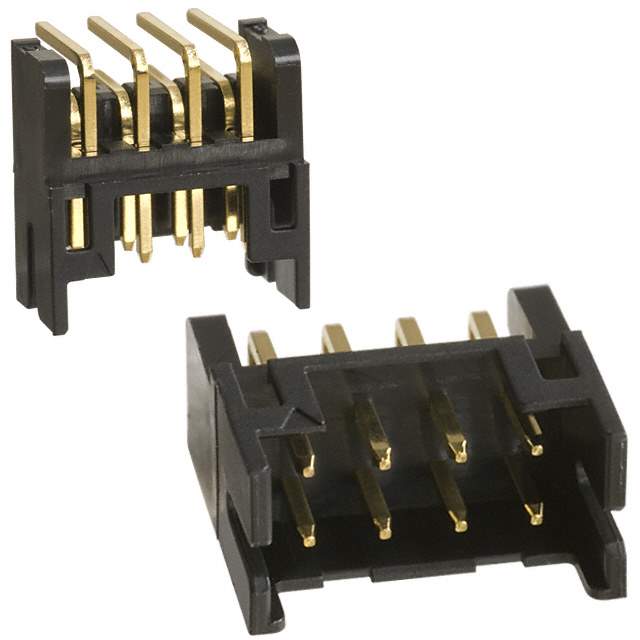

Same model may have multiple batches, images only for reference.

DF11-8DP-2DS(52)

Name: DF11-8DP-2DS(52)
Brand: Hirose Electric Co Ltd
SKU: 975552
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF11-8DP-2DS(52)
Manufacturer	Hirose Electric Co Ltd
Catalog	Circular Connectors - Housings
Description	CONN HEADER R/A 8POS 2MM / Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm)
Datasheet	DF11-8DP-2DS(52) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF11
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.118" (3.00mm)
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.197" (5.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Voltage Rating	250V
Base Product Number	DF11
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	H2867,DF118DP2DS52,543-0535-7-52,DF11-8DP-2DS(52)-ND,*DF11-8DP-2DS(52),Q10346218JH
Standard Package	48
Win Source Part Number	975552-DF11-8DP-2DS(52)
Ultra Librarian 3D Model	Ultra Librarian DF11-8DP-2DS(52) CAD Model

Alternative Products

Description

The DF11-8DP-2DS(52) from Hirose Electric Co Ltd is a rectangular connector header with 8 positions and male pin contacts.

Operating Temperature: -40°C to 85°C
Package: Tube
Mounting: Through hole, right angle
Family: DF11
Category: Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
Standard Package: 48
