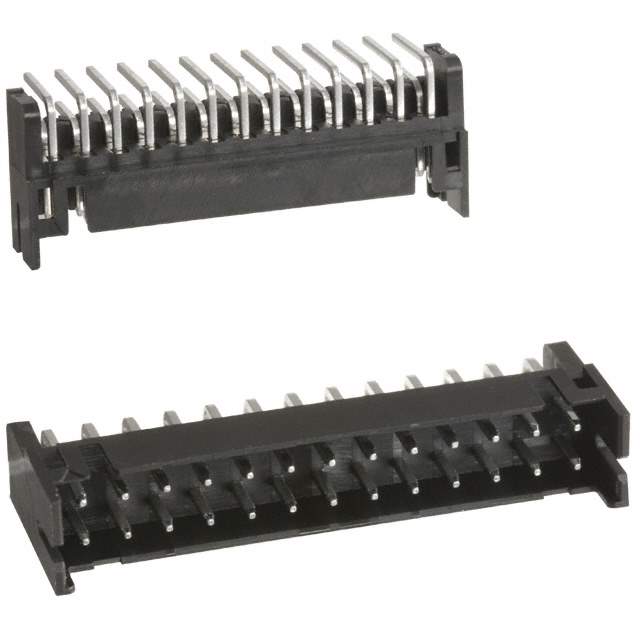

DF11-26DP-2DS(22) Real Image
Same model may have multiple batches, images only for reference.

DF11-26DP-2DS(22)

Part No DF11-26DP-2DS(22)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER R/A 26POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm)
Manufacturer Hirose Electric Co Ltd
Series DF11
Package Tube
Part Status Obsolete
Operating Temperature Range -30°C ~ 85°C
Mounting Through Hole, Right Angle
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number DF11-26DP-2DS, *DF11-26DP-2DS(22), H2280
Quantity per package 17
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916906-DF11-26DP-2DS(22)
Ultra Librarian 3D Model Ultra Librarian DF11-26DP-2DS(22) CAD Model

Description

The Hirose Electric Co Ltd 916906-DF11-26DP-2DS(22) is a DF11 series connector header with a right angle 26 position 0.079" (2.00mm) configuration.

  • Series: DF11
  • Configuration: Right Angle 26 Position
  • Pitch: 0.079" (2.00mm)
  • Mounting: Through Hole with Right Angle Feature
  • Package: Tube
  • Quantity per Package: 17
  • Application: Connectors
