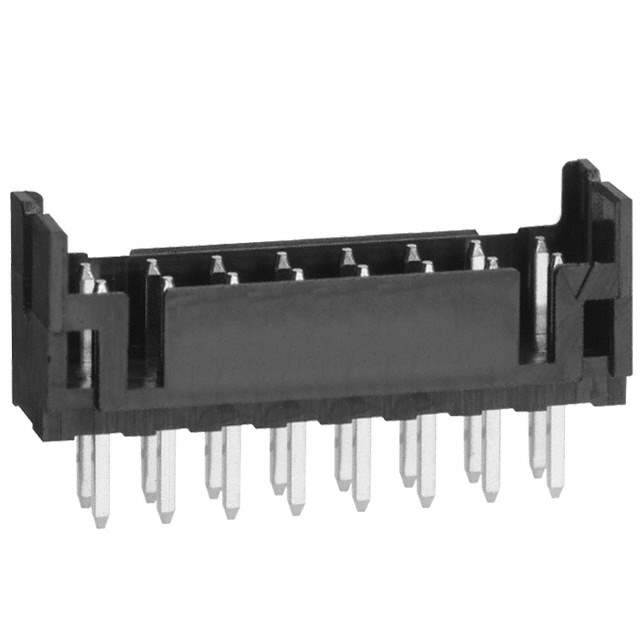

DF11-16DP-2DSA(08) Real Image
Same model may have multiple batches, images only for reference.

DF11-16DP-2DSA(08)

Part No DF11-16DP-2DSA(08)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 2MM
Datasheet
DF11-16DP-2DSA(08) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 26 Weeks
Features Connector Header Through Hole 16 position 0.079" (2.00mm)
Manufacturer Hirose Electric Co Ltd
Series DF11
Package Bulk
Operating Temperature Range -30°C ~ 85°C
Mounting Through Hole
Family Name DF11
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 543-0523-8-08, DF11-16DP-2DSA(08)-ND, H125945
Quantity per package 100
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916897-DF11-16DP-2DSA(08)
Ultra Librarian 3D Model Ultra Librarian DF11-16DP-2DSA(08) CAD Model

Description

The Hirose Electric Co Ltd DF11 series is a 16 position 0.079" (2.00mm) connector header through hole.

  • Connector Type: Connector Header Through Hole
  • Positions: 16
  • Pitch: 0.079" (2.00mm)
  • Family Name: DF11
  • Category: Connector
  • Operating Temperature Range: -30°C to 85°C
  • Supply and Demand Status: Balance
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Package: Bulk
  • Connectors per Package: 100
  • Estimated Production Lead Time: 26 weeks
  • Other Part Numbers: 543-0523-8-08, DF11-16DP-2DSA(08)-ND
