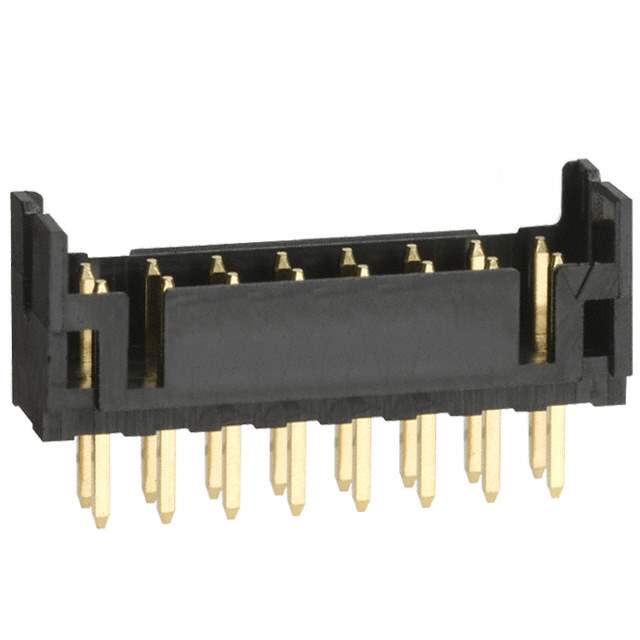

DF11-16DP-2DSA(01)

Name: DF11-16DP-2DSA(01)
Brand: Hirose Electric Co Ltd
SKU: 772555
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF11-16DP-2DSA(01)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER 16POS 2MM PCB GOLD / Conn Shrouded Header (4 Sides) HDR 16 POS 2mm Solder ST Thru-Hole Bag
Datasheet	DF11-16DP-2DSA(01) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Series	DF11
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.118" (3.00mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.299" (7.60mm)
Insulation Height	0.260" (6.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8μin (0.20μm)
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Operating Temperature Range	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	2A
Voltage Rating	250V
Mated Stacking Heights	7.55, 7.8mm, 8.9mm
Win Source Part Number	772555-DF11-16DP-2DSA(01)
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	100
Family Name	DF11
Introduction Date	January 20, 1999
ECCN	EAR99
Country of Origin	Japan
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian DF11-16DP-2DSA(01) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF11-16DP-2DSA(01) is a 2-row header type connector.

Pitch: 0.079" (2.00mm)
Positions: 16
Locking Feature: Detent Lock
Shrouding: Shrouded - 4 Wall
Voltage Rating: 250V
Current Rating: 2A
Height Above Board: 0.299" (7.60mm)
Contact Finish: Gold
Contact Finish Thickness: 8μin (0.20μm)
Contact Material: Brass
Material Flammability Rating: UL94 V-0
Insulation Material: Polyamide (PA), Nylon
Applications: Board to Board or Cable
Mating Cycle: All Positions Loaded
Packaging: Bulk (100 pieces per package)
