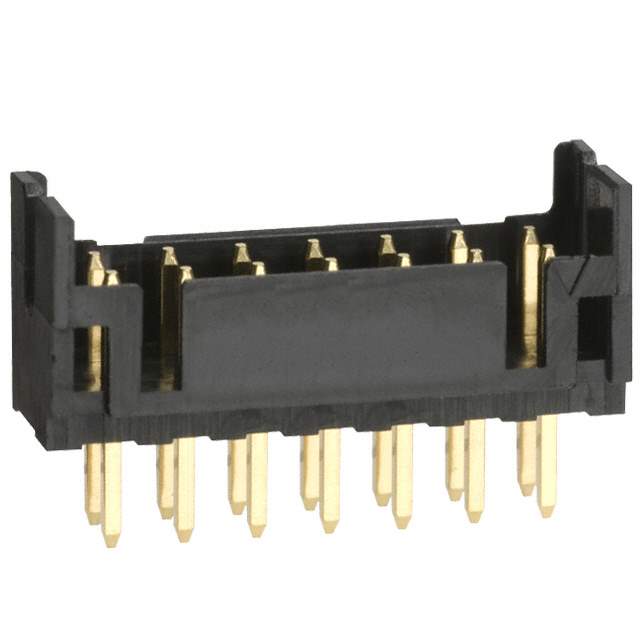

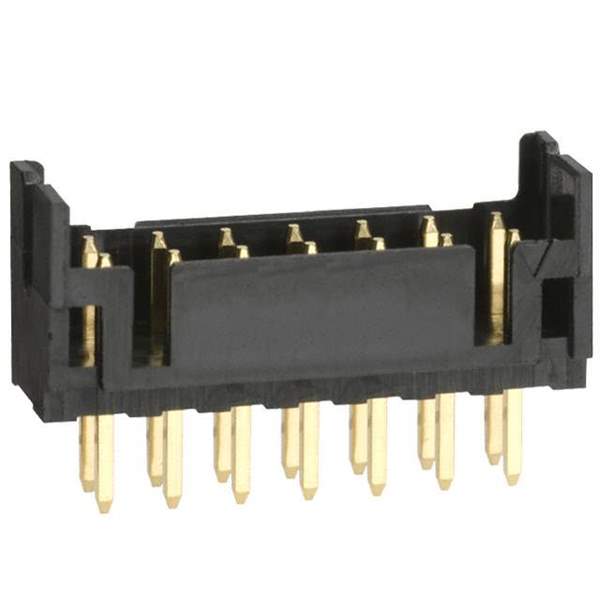

DF11-14DP-2DSA(01) Real Image
Same model may have multiple batches, images only for reference.

DF11-14DP-2DSA(01)

Part No DF11-14DP-2DSA(01)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2MM / Connector Header Through Hole 14 position 0.079" (2.00mm)
Datasheet
DF11-14DP-2DSA(01) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.118" (3.00mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.299" (7.60mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2A
Voltage Rating 250V
Mated Stacking Heights 7.55, 7.8mm, 8.9mm
Base Product Number DF11
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number *DF11-14DP-2DSA(01),H2855,DF1114DP2DSA01,543-0522-5-01
Standard Package 100
Win Source Part Number 1333038-DF11-14DP-2DSA(01)
Ultra Librarian 3D Model Ultra Librarian DF11-14DP-2DSA(01) CAD Model

Description

The Hirose Electric Co Ltd DF11-14DP-2DSA(01) is a 14-position male pin header connector that belongs to the rectangular connector family.

  • Applications: Board-to-board or cable-to-board
  • Pitch: 2.00mm
  • Mounting: Through Hole
  • Contact Material: Brass
  • Contact Finish: Gold
  • Voltage Rating: 250V
  • Current Rating: 2A
  • Temperature Range: -30°C to 85°C
  • Flammability Rating: UL94 V-0
  • Shrouding: 4-wall design
  • Fastening Type: Detent Lock
  • Contact Length: 3.00mm
  • Overall Contact Length: 7.60mm
  • Insulation Height: 6.60mm
  • RoHS Compliant: Yes
