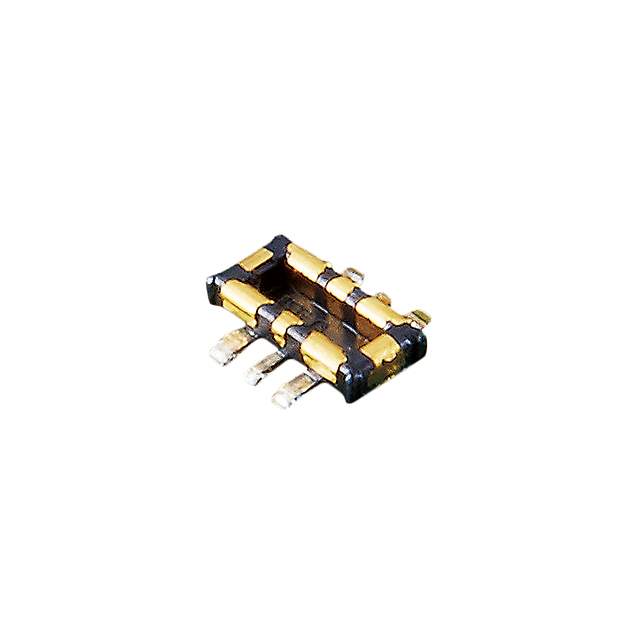

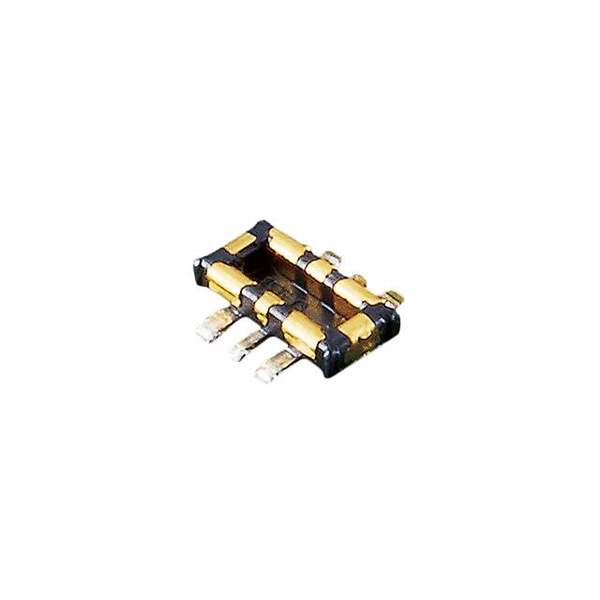

Same model may have multiple batches, images only for reference.

BM29B-2DP/2-0.35V(53)

Name: BM29B-2DP/2-0.35V(53)
Brand: Hirose Electric Co Ltd
SKU: 962432
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	BM29B-2DP/2-0.35V(53)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 2POS SMD GOLD / 4 (2 + 2 Power) Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	BM29
Package	Tape & Reel
Connector Type	Header, Outer Shroud Contacts
Number of Positions	4 (2 + 2 Power)
Pitch	0.014" (0.35mm)
Number of Rows	2
Mounting	SMD (SMT)
Contact Finish	Gold
Mated Stacking Heights	0.6mm
Height Above Board	0.016" (0.41mm)
Base Product Number	BM29B
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	673-7002-0-53,H125294TR,H125294CT,H125294DKR
Standard Package	1,000
Win Source Part Number	962432-BM29B-2DP/2-0.35V(53)
Ultra Librarian 3D Model	Ultra Librarian BM29B-2DP/2-0.35V(53) CAD Model

Alternative Products

Description

The 962432-BM29B-2DP/2-0.35V(53) is a BM29 series connector that is designed for board to board applications.

Series: BM29
Application: Board to Board
Positions: 4
Design: Outer Shroud Contact Header
Rows: Two
Pitch: 0.014 inches
Contact Finish: Gold
Packaging: Tape and Reel
Standard Package: 1000
