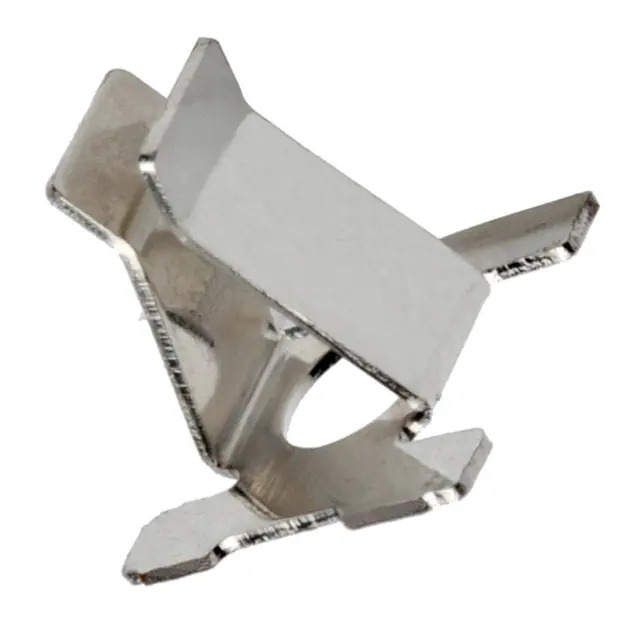

S9101-46R Harwin Inc.
Same model may have multiple batches, images only for reference.

S9101-46R

Part No S9101-46R
Manufacturer Harwin Inc.
Catalog Terminals
Description CONN PIN RCPT .043-.071 SMD
Datasheet
S9101-46R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - PC Pin Receptacles, Socket Connectors
Mfr Harwin Inc.
Series EZ-Board
Package Tape & Reel
Product Status Active
Tail Type Clip
Termination Surface Mount
Length - Overall 0.177" (4.50mm)
Accepts Pin Diameter 0.043" ~ 0.071" (1.10mm ~ 1.80mm)
Accepts Square Pin Size 0.043" ~ 0.055" (1.10mm ~ 1.40mm)
Pin Hole Diameter 0.079" (2.00mm)
Mounting Hole Diameter 0.158" (4.01mm)
Flange Diameter -
Tail Diameter -
Socket Depth 0.138" (3.51mm)
Contact Material Phosphor Bronze
Contact Finish Tin
Contact Finish Thickness 157.5µin (4.00µm)
Features -
Temperature Range - Operating -40°C ~ 105°C
Board Thickness -
Insertion Force 2.80N ~ 4.50N
Base Product Number S9101
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1379718-S9101-46R
Ultra Librarian 3D Model Ultra Librarian S9101-46R CAD Model

Description

The S9101-46R is a surface mount PC pin receptacle from Harwin Inc.

  • Series: EZ-Board
  • Packaging: Tape and Reel
  • Contact Finish: Tin
  • Contact Finish Thickness: 157.5μin (4.00μm)
  • Overall Length: 0.177" (4.50mm)
  • Pin Diameter Accepted: 0.043" to 0.071" (1.10mm to 1.80mm)
  • Termination: Surface Mount
  • Operating Temperature: -40°C to 105°C
