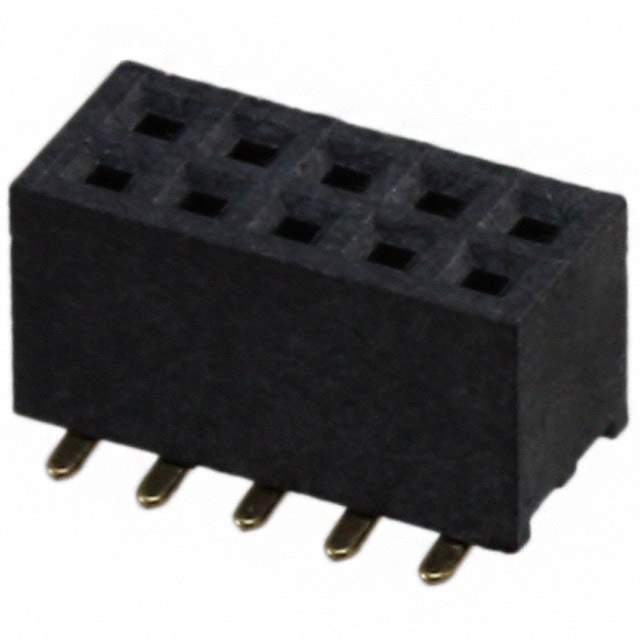

M50-3120545 Real Image
Same model may have multiple batches, images only for reference.

M50-3120545

Part No M50-3120545
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN RCPT 10POS 0.05 GOLD SMD
Datasheet
M50-3120545 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 11 Weeks
Features 10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Manufacturer Harwin Inc.
Series Archer M50
Package Tube
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount
Family Name M50-312
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number M503120545, 952-1713
Quantity per package 89
Popularity High
Supply and Demand Status Balance
Win Source Part Number 924902-M50-3120545
Ultra Librarian 3D Model Ultra Librarian M50-3120545 CAD Model

Description

The Harwin Inc. M50-3120545 is a 10 position receptacle connector that is part of the Archer M50 series.

  • Manufacturer: Harwin Inc.
  • Popularity: high popularity among electronic components
  • Feature: 0.050" (1.27mm) surface mount gold
  • Operating Temperature Range: -40°C ~ 105°C
  • Package: tube package
  • Quantity: 89 per package
