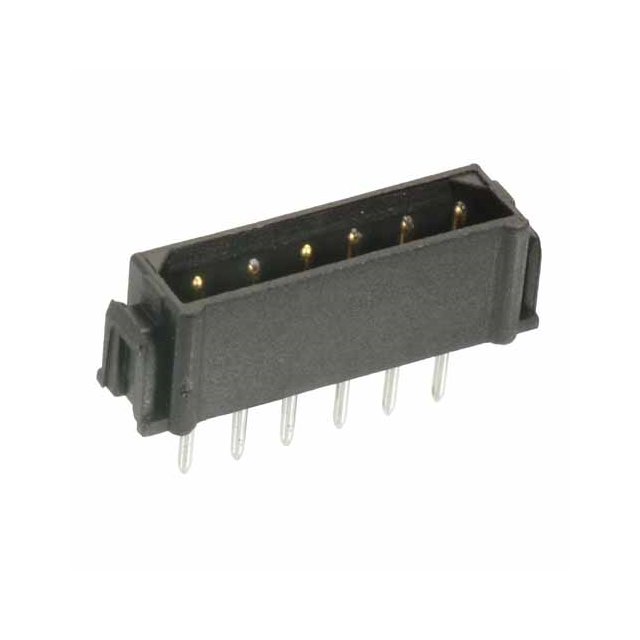

Same model may have multiple batches, images only for reference.

M80-8520445

Name: M80-8520445
Brand: Harwin Inc.
SKU: 1340772
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	M80-8520445
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 2MM / Connector Header Through Hole 4 position 0.079" (2.00mm)
Datasheet	M80-8520445 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate L-Tek
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.219" (5.56mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS) , Glass Filled
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	800V
Mated Stacking Heights	7.23mm, 10.2mm, 13.46mm
Base Product Number	M80-852
Standard Package	21
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1340772-M80-8520445
Ultra Librarian 3D Model	Ultra Librarian M80-8520445 CAD Model

Alternative Products

Description

The 1340772-M80-8520445 is a board to board or cable Datamate L-Tek header connector with 4 positions from Harwin Inc.

Connector Type: Header, Male Pin
Fastening Type: Latch Holder
Packaging: Bulk
Standard Package: 21
Voltage Rating: 800V
Number of Positions: 4
Shrouding: Shrouded - 4 Wall
Operating Temperature: -55°C ~ 125°C
REACH: Unaffected
Current Rating: 2.2A
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
