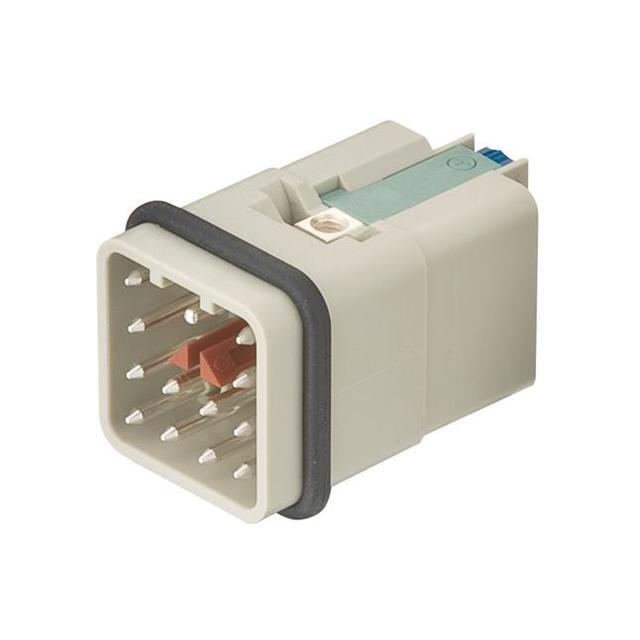

09120123001 HARTING – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

09120123001

Part No 09120123001
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description Male Insert without Contacts Gray 12 Position Crimp, Push In with Lock
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer HARTING
Series Han® Q
Packaging Bulk
Connector Type Insert without Contacts
Gender Male
Number of Positions 12
Size 3A
Termination Style Crimp, Push In with Lock
Voltage Rating 600V
Current Rating (Amps) 10A
Contact Type Han® D
Temperature Range - Operating -40°C ~ 125°C
Color Gray
Housing Material Polycarbonate (PC)
Material Flammability Rating UL94 V-0
Base Product Number 09120123
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1480736-09120123001
Ultra Librarian 3D Model Ultra Librarian 09120123001 CAD Model
