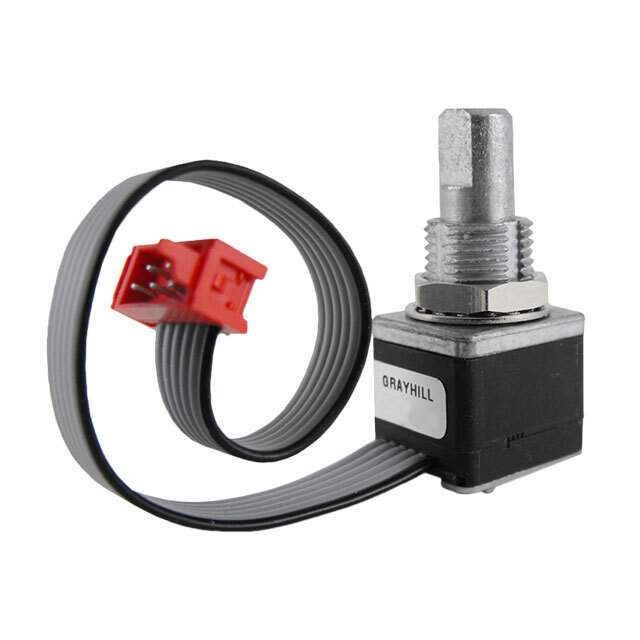

62AG18-L5-P Real Image
Same model may have multiple batches, images only for reference.

62AG18-L5-P

Part No 62AG18-L5-P
Manufacturer Grayhill Inc.
Catalog Encoders
Description OPTICAL ENCODER
Datasheet
62AG18-L5-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Grayhill Inc.
Series 62AG
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 20
Operating Supply Voltage 5V
Actuator Type 1/4" Dia Flatted End
Detent Yes
Built in Switch Yes
Mounting PCB, Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 1M
Win Source Part Number 764443-62AG18-L5-P
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 62AG18-L5-P CAD Model

Description

The Grayhill Inc. 764443-62AG18-L5-P is a high-quality optical encoder that is designed for use in a wide range of industrial applications. With its quadrature (incremental) output type and 20 pulses per revolution, it offers exceptional performance and reliability.

  • Output Type: Quadrature (Incremental)
  • Pulses Per Revolution: 20
  • Termination Style: PC Pin
  • Orientation: Vertical
  • Mounting Type: PCB Through Hole
  • Actuator Type: 1/4" dia flatted end
  • Switch: Yes
  • Detent: Yes
  • Rotational Life: 1M cycles
  • Series: 62AG
  • ECCN: EAR99
  • Supply and Demand Status: Limited
