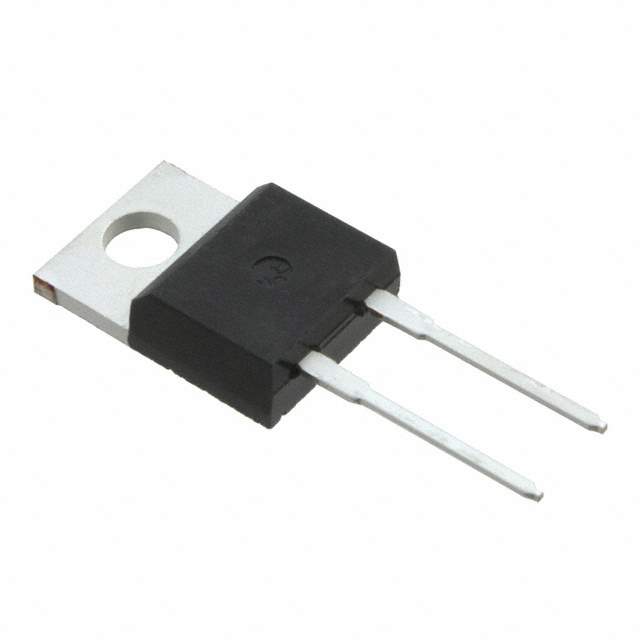

Same model may have multiple batches, images only for reference.

GC02MPS12-220

Name: GC02MPS12-220
Brand: GeneSiC Semiconductor
SKU: 1183025
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	GC02MPS12-220
Manufacturer	GeneSiC Semiconductor
Catalog	Diodes, Rectifiers - Single
Description	SIC DIODE 1200V 2A TO-220-2 / Diode Silicon Carbide Schottky 1200 V 12A (DC) Through Hole TO-220-2
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	GeneSiC Semiconductor
Series	SiC Schottky MPS™
Package	Tube
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	1200 V
Current - Average Rectified (Io)	12A (DC)
Voltage - Forward (Vf) (Max) @ If	1.8 V @ 2 A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0 ns
Current - Reverse Leakage @ Vr	2 µA @ 1200 V
Capacitance @ Vr, F	127pF @ 1V, 1MHz
Mounting Type	Through Hole
Package / Case	TO-220-2
Supplier Device Package	TO-220-2
Operating Temperature - Junction	-55°C ~ 175°C
Base Product Number	GC02MPS12
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	1242-1323
Standard Package	12,000
Win Source Part Number	1183025-GC02MPS12-220
Ultra Librarian 3D Model	Ultra Librarian GC02MPS12-220 CAD Model

Alternative Products

Description

The GeneSiC Semiconductor GC02MPS12-220 is a silicon carbide Schottky diode that is part of the SiC Schottky MPS™ series. It is packaged in a TO-220-2 package and has a manufacturer part number of 1183025-GC02MPS12-220. The diode has a voltage rating of 1200 V and an average rectified current of 12A (DC). The forward voltage is 1.8 V @ 2 A and the reverse recovery time is 0 ns. The capacitance is 127pF @ 1V, 1MHz and the operating temperature range is -55°C to 175°C. The diode is mounted using through-hole technology.
