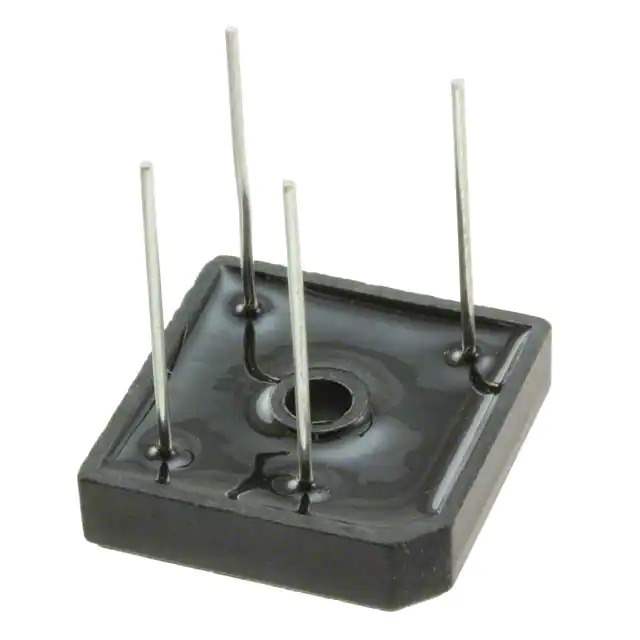

GBPC5010W Real Image
Same model may have multiple batches, images only for reference.

GBPC5010W

Part No GBPC5010W
Manufacturer GeneSiC Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 1KV 50A GBPC-W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr GeneSiC Semiconductor
Package Bulk
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 50 A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 25 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-Square, GBPC-W
Supplier Device Package GBPC-W
Base Product Number GBPC5010
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 849055-GBPC5010W
Ultra Librarian 3D Model Ultra Librarian GBPC5010W CAD Model

Description

The GBPC5010W is a single-phase bridge rectifier diode with a current rating of 50 A.

  • Forward Voltage: 1.2 V @ 25 A
  • Peak Reverse Voltage: 1 kV
  • Mounting Type: Through-Hole
  • Package: 4-Square, GBPC-W
  • Operating Temperature: -55°C to 150°C
  • Technology: Standard
  • Manufacturer: GeneSiC Semiconductor
  • Packaging: Bulk
  • Standard Package: 50 pcs
