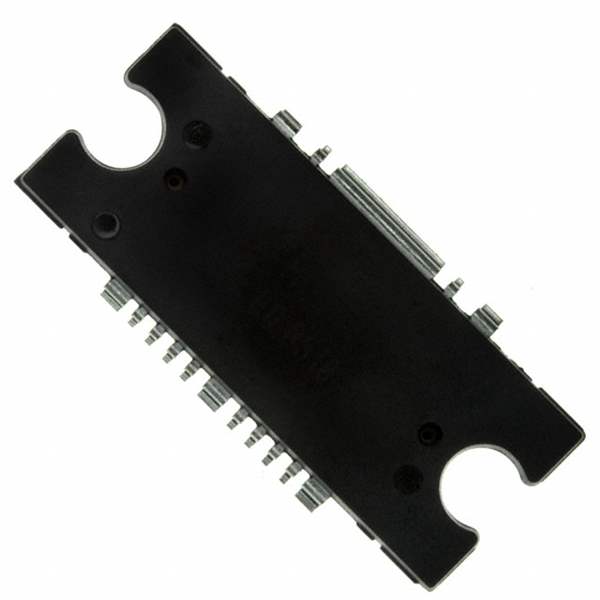

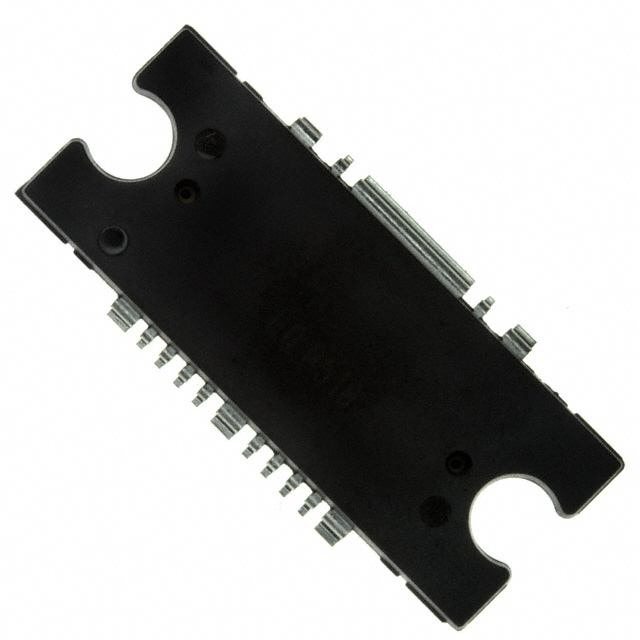

MW4IC2020GNBR1 Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MW4IC2020GNBR1

Part No MW4IC2020GNBR1
Manufacturer Freescale Semiconductor - NXP
Catalog RF Amplifiers
Description IC PWR AMP RF 26V 20W TO272-16GW
Datasheet
MW4IC2020GNBR1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 1.6GHz to 2.4GHz
Gain 29dB
RF Type Cellular, GSM, EDGE, CDMA
Supply Voltage - Operating 26V
Operating Supply Current 80mA
Case / Package TO-272 WB-16 GULL
Win Source Part Number 059693-MW4IC2020GNBR1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MW4IC2020GNBR1 CAD Model

Description

The NXP MW4IC2020GNBR1 is a high-performance RF power amplifier designed for cellular, GSM, EDGE, and CDMA applications.

  • Frequency: 1.6GHz to 2.4GHz
  • Gain: 29dB
  • Package: TO-272 WB-16 GULL
  • Operating Voltage: 26V
  • Operating Current: 80mA
  • Status: Obsolete (EOL)
  • Supply and Demand: Limited
