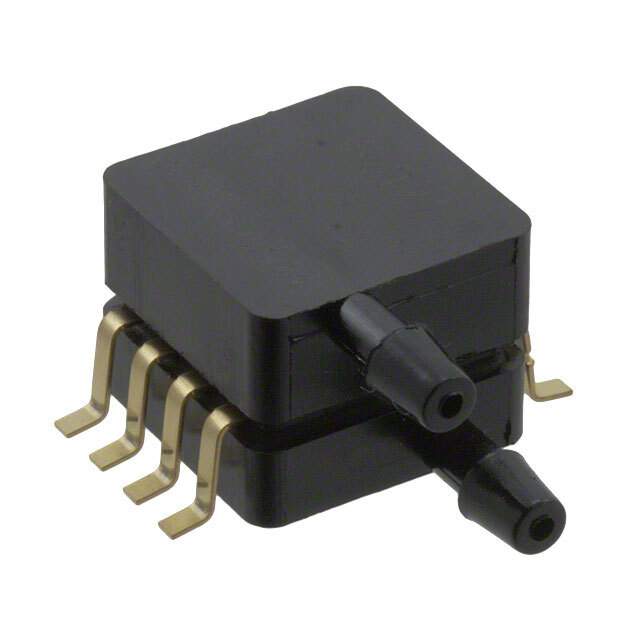

MPXV7025DP Freescale Semiconductor - NXP MPXV7025DP Real Image MPXV7025DP label picture MPXV7025DP real image3647
Same model may have multiple batches, images only for reference.
MPXV7025DP Freescale Semiconductor - NXP MPXV7025DP Real Image MPXV7025DP label picture MPXV7025DP real image3647
MPXV7025DP Freescale Semiconductor - NXP MPXV7025DP Real Image MPXV7025DP label picture MPXV7025DP real image3647
Same model may have multiple batches, images only for reference.

MPXV7025DP

Part No MPXV7025DP
Manufacturer Freescale Semiconductor - NXP
Catalog Pressure Sensors, Transducers
Description PRESSURE SENSOR DUAL PORT 8-SOP
Datasheet
MPXV7025DP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer NXP
Status Active
Pressure Type Differential
Operating Pressure ±3.63 PSI (±25 kPa)
Output Type Analog Voltage
Output 0.2 V to 4.7 V
Accuracy ±5%
Supply Voltage - Operating 4.75 V to 5.25 V
Port Size Male - 0.13" (3.3mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PCB
Maximum Pressure ±29.01 PSI (±200 kPa)
Temperature Range - Operating -40°C to 125°C
Win Source Part Number 024336-MPXV7025DP
Family Name MPXV7025DP
Introduction Date March 03, 2005
ECCN EAR99
Halogen Free Not Compliant
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MPXV7025DP CAD Model

Description

The NXP MPXV7025DP is a differential pressure sensor with a male 0.13" (3.3mm) tube dual port style.

  • Output: Analog voltage 0.2V to 4.7V
  • Accuracy: ±5%
  • Feature: Temperature-compensated
  • Operating Pressure: ±3.63 PSI (±25 kPa)
  • Maximum Pressure: ±29.01 PSI (±200 kPa)
  • Supply Voltage: 4.75V to 5.25V
  • Temperature Range: -40°C to 125°C
  • Features: Popular and reliable solution for differential pressure sensing applications
