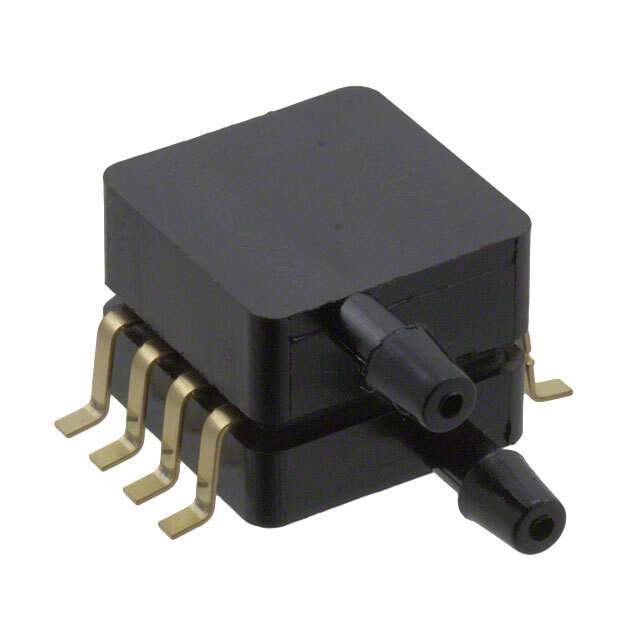

MPXV5010DP

Part No MPXV5010DP
Manufacturer Freescale Semiconductor - NXP
Catalog Pressure Sensors, Transducers
Description Pressure Sensor 1.45 PSI (10 kPa) Differential Male - 0.13" (3.3mm) Tube, Dual 0.2 V ~ 4.7 V 8-SMD Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors,Transducers
Family Pressure Sensors, Transducers
Manufacturer Freescale Semiconductor - NXP
Series MPXV5010
Pressure Type Differential
Operating Pressure 1.45 PSI (10 kPa)
Output Type Analog Voltage
Output 0.2 V ~ 4.7 V
Accuracy ±5%
Operating Supply Voltage 4.75 V ~ 5.25 V
Port Size Male - 0.13" (3.3mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PCB
Maximum Pressure 5.8 PSI (40 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 8-SMD Module
Win Source Part Number 208790-MPXV5010DP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in HVAC, Medical, Automation & Process Control, Consumer Electronics, Test & Measurement
Family Name MPXV5010D
Introduction Date January 15, 2002
ECCN EAR99
Country of Origin Republic of Korea
Halogen Free Not Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian MPXV5010DP CAD Model

Description

The Freescale Semiconductor - NXP MPXV5010DP is a pressure sensor used in various electronic devices.

  • Popularity: High
  • Commonly used in: Automation and process control, consumer electronics, HVAC, medical, and test and measurement applications
  • Feature: Temperature compensated
  • Supply and Demand: Limited
  • Halogen-Free Regulations: Not compliant
