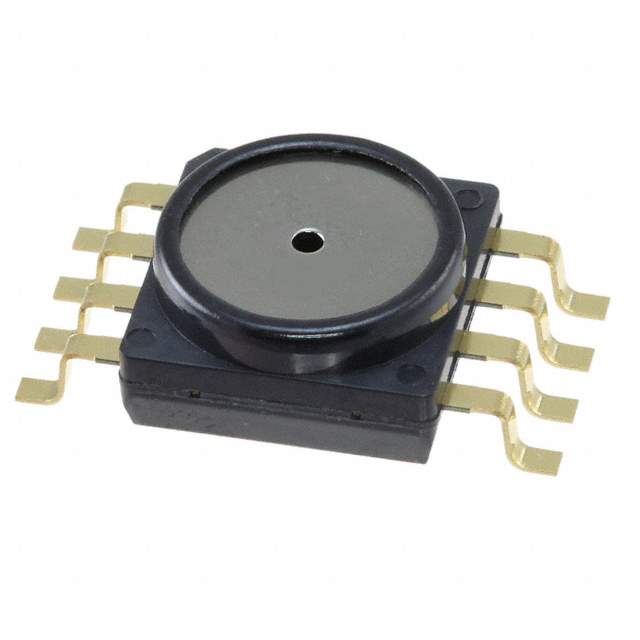

MPXAZ6115A6U Real Image
Same model may have multiple batches, images only for reference.

MPXAZ6115A6U

Part No MPXAZ6115A6U
Manufacturer Freescale Semiconductor - NXP
Catalog Pressure Sensors, Transducers
Description SENSOR ABS PRESS 16.7PSI MAX
Datasheet
MPXAZ6115A6U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer NXP
Status Obsolete(EOL)
Pressure Type Absolute
Operating Pressure 2.18 PSI to 16.68 PSI (15 kPa to 115 kPa)
Output Type Analog Voltage
Output 0.2 V to 4.7 V
Accuracy ±1.5%
Supply Voltage - Operating 4.75 V to 5.25 V
Port Style No Port
Features Temperature Compensated
Termination Style PCB
Maximum Pressure 58.02 PSI (400 kPa)
Temperature Range - Operating -40°C to 125°C
Win Source Part Number 208786-MPXAZ6115A6U
Ultra Librarian 3D Model Ultra Librarian MPXAZ6115A6U CAD Model

Description

The NXP MPXAZ6115A6U is a temperature-compensated pressure sensor that outputs an analog voltage.

  • Operating Temperature: -40°C to 125°C
  • Operating Pressure: 2.18 PSI to 16.68 PSI (15 kPa to 115 kPa)
  • Port Style: No port
  • Output Range: 0.2 V to 4.7 V
  • Accuracy: ±1.5%
  • Status: Obsolete (EOL)
  • Mounting: PCB
  • Operating Voltage: 4.75 V to 5.25 V
  • Maximum Pressure: 58.02 PSI (400 kPa)
  • Category: Sensors and Transducers
