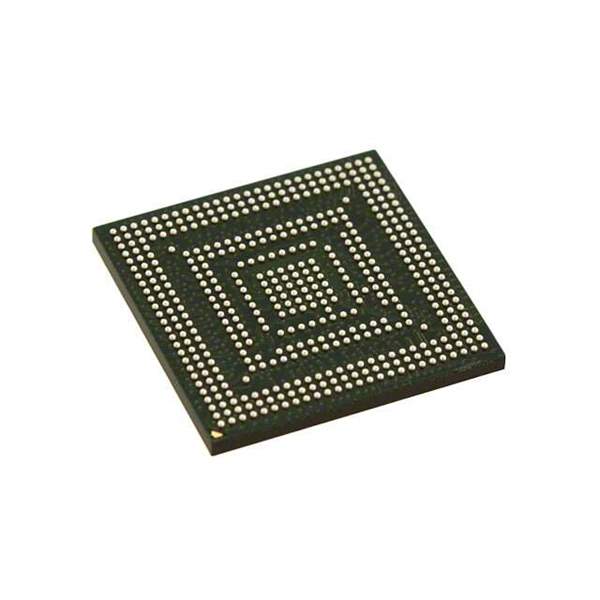

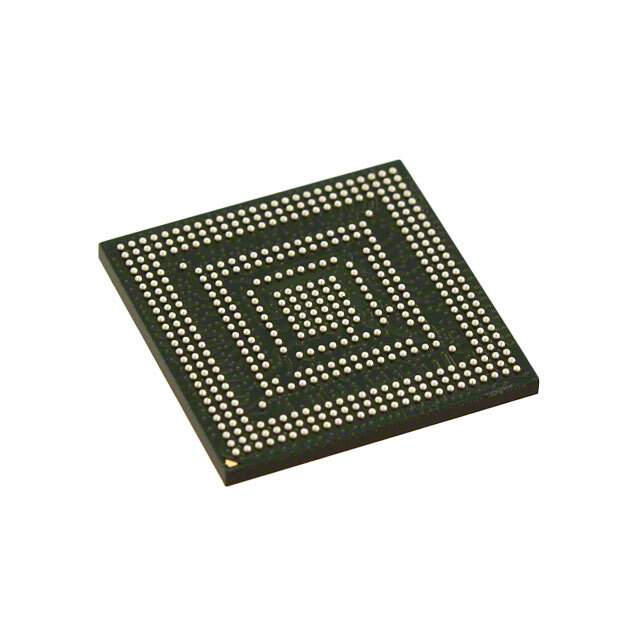

MCIMX31LDVKN5DR2 Real Image
Same model may have multiple batches, images only for reference.

MCIMX31LDVKN5DR2

Part No MCIMX31LDVKN5DR2
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description SOC i.MX31 ARM1136JF-S 0.09um 457-Pin MAP-BGA T/R / IC MPU I.MX31 532MHZ 457MAPBGA
Datasheet
MCIMX31LDVKN5DR2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Reel - TR
Status Active
Core Processor ARM1136JF-S
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 532MHz
Co-Processors/DSP Multimedia; GPU, IPU, MPEG-4, VFP
RAM Controllers DDR
Graphics Acceleration Yes
Display & Interface Controllers Keyboard, Keypad, LCD
USB USB 2.0 (3)
Voltage - I/O 1.8V, 2.0V, 2.5V, 2.7V, 3.0V
Temperature Range - Operating -20°C to 70°C (TA)
Security Features Random Number Generator, RTIC, Secure Fusebox, Secure JTAG, Secure Memory
Additional Interfaces 1-Wire, AC97, ATA, FIR, I2C, I2S, MMC/SD/SDIO, MSHC, PCMCIA, SDHC, SIM, SPI, SSI, UART
Win Source Part Number 085713-MCIMX31LDVKN5DR2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name MCIMX31L
Introduction Date June 11, 2008
ECCN 5A992.c
Country of Origin China, Singapore
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MCIMX31LDVKN5DR2 CAD Model

Description

The NXP MCIMX31LDVKN5DR2 is a high-performance integrated circuit designed for use in embedded systems.

  • Speed: 532MHz
  • Core Processor: ARM1136JF-S
  • Part Core Size: 32-bit
  • RAM Controllers: DDR
  • Supply and Demand: Balanced
  • Estimated EOL Date: 2027
  • Halogen-Free: Compliant
  • Status: Active
  • Multimedia: Yes
  • Graphics Acceleration: Yes
  • Display and Interface Controllers: Yes
