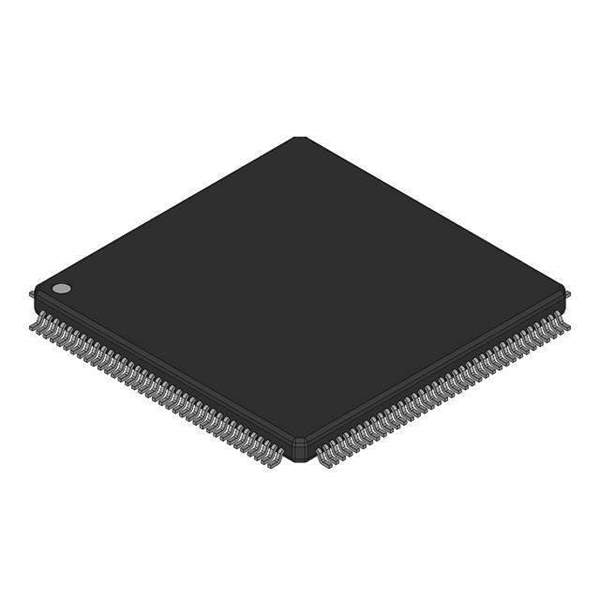

MC56F8356VFVE Real Image
Same model may have multiple batches, images only for reference.

MC56F8356VFVE

Part No MC56F8356VFVE
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description MCU 16-bit 56800E CISC 256KB Flash 2.5V/3.3V 144-Pin LQFP Tray / IC MCU 16BIT 256KB FLASH 144LQFP
Datasheet
MC56F8356VFVE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor 56800E
Part Core Size 16-Bit
Speed(Frequency) 60MHz
Number of I/O 62
Program Memory Size 256KB (128K x 16)
Program Memory Type FLASH
Data RAM Size 10K x 16
Supply Voltage - Operating 2.25 V to 3.6 V
Data Converters A/D 16x12b
Oscillator Type External
Temperature Range - Operating -40°C to 105°C (TA)
Case / Package 144-LQFP (20x20)
Win Source Part Number 041479-MC56F8356VFVE
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name MC56F8356
Introduction Date June 17, 2005
ECCN 3A991.a.2
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian MC56F8356VFVE CAD Model

Description

The NXP MC56F8356VFVE is a 16-bit digital signal controller with a 56800E core processor.

  • Program Memory: 256KB (128K x 16) FLASH
  • Data RAM Size: 10K x 16
  • Oscillator Type: External
  • I/O: 62
  • Data Converters: A/D 16x12b
  • Supply Voltage: 2.25 V to 3.6 V
  • Speed Frequency: 60MHz
  • Case/Package: 144-LQFP (20x20)
  • Temperature Range: -40°C to 105°C (TA)
  • Halogen-Free Standards: Compliant
