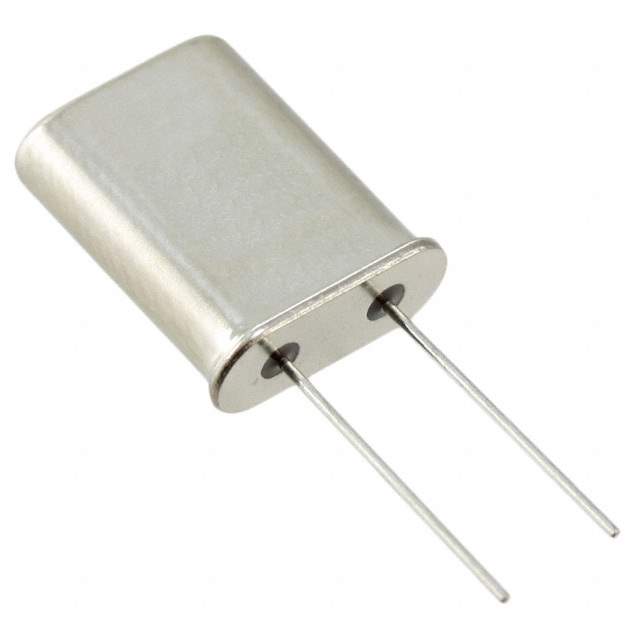

FOXLF080-20 Real Image
Same model may have multiple batches, images only for reference.

FOXLF080-20

Part No FOXLF080-20
Manufacturer Fox Electronics
Catalog Crystals
Description Resistance Weld Thru-Hole Crystal
Datasheet
FOXLF080-20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Fox Electronics
Series HC49ULF
Packaging Bulk
Type MHz Crystal
Frequency 8MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 35 Ohm
Operating Mode Fundamental
Operating Temperature Range -20°C ~ 70°C
Mounting Style Through Hole
Package HC49/U
Size 0.435" L x 0.183" W (11.05mm x 4.65mm)
Height - Seated (Maximum) 0.530" (13.46mm)
Win Source Part Number 1175053-FOXLF080-20
Manufacturer Homepage www.foxonline.com
Popularity Medium
Supply and Demand Status Limited
Introduction Date June 01, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian FOXLF080-20 CAD Model

Description

The Fox Electronics MHz Crystal is a high-quality electronic component that comes in a compact size of 0.435" L x 0.183" W (11.05mm x 4.65mm).

  • Size: 0.435" L x 0.183" W (11.05mm x 4.65mm)
  • Frequency: 8MHz
  • ESR: 35 Ohms
  • Frequency Stability: ±50ppm
  • Mounting Type: Through Hole
  • Load Capacitance: 20pF
  • Operating Mode: Fundamental
  • Temperature Range: -20°C ~ 70°C
  • Case/Package: HC49/U
  • Manufacturer: Fox Electronics
