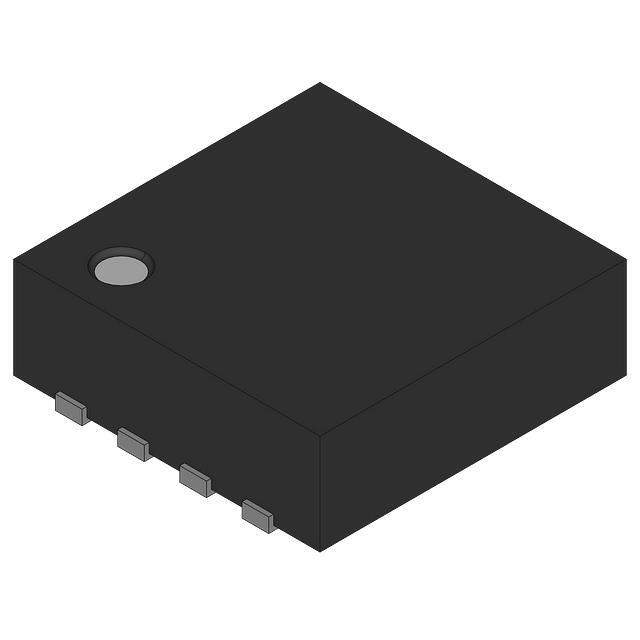

NC7WZ00L8X

Part No NC7WZ00L8X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE NAND 2CH 2-INP 8MICROPAK
Datasheet
NC7WZ00L8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type NAND Gate
Number of Circuits 2
Number of Inputs 2
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 32mA, 32mA
Max Propagation Delay @ V, Max CL 3.6ns @ 5V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-MicroPak
Dimension 8-UFQFN
Win Source Part Number 024863-NC7WZ00L8X
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian NC7WZ00L8X CAD Model

Description

The Fairchild/ON Semiconductor NAND gate is a high-speed, low-power, dual 2-input gate that operates on a supply voltage ranging from 1.65 V to 5.5 V.

  • Current Output (High/Low): 32mA
  • Maximum Propagation Delay: 3.6ns @ 5V, 50pF
  • Package: 8-MicroPak
  • Quiescent Current: 1μA
  • Applications: Automotive, industrial, and consumer electronics
  • Packaging: Reel - TR
  • Quantity: 5k pcs
