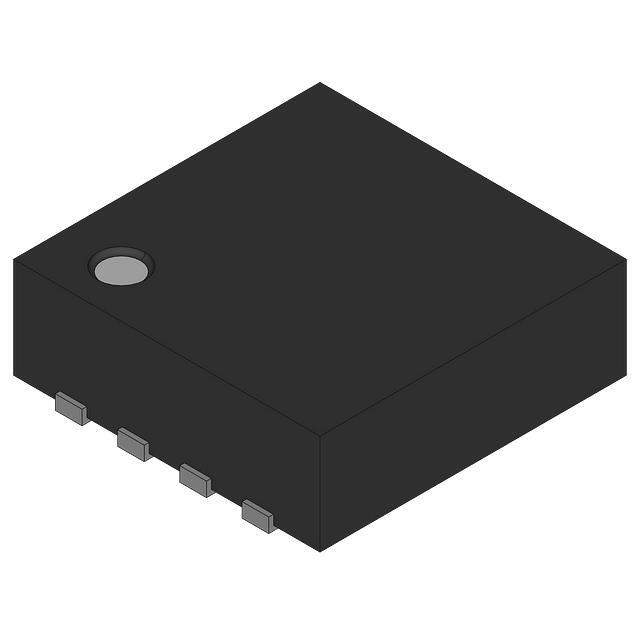

NC7NP14L8X Real Image
Same model may have multiple batches, images only for reference.

NC7NP14L8X

Part No NC7NP14L8X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC INVERTER ULP TRIPLE 8MICROPAK
Datasheet
NC7NP14L8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 3
Number of Inputs 3
Features Schmitt Trigger
Supply Voltage - Operating 0.9 V to 3.6 V
Current - Quiescent (Max) 0.9μA
Current - Output High, Low 2.6mA, 2.6mA
Logic Level - Low 0.1 V to 0.6 V
Logic Level - High 0.6 V to 2.6 V
Max Propagation Delay @ V, Max CL 9.2ns @ 3.3V, 30pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-MicroPak
Dimension 8-UFQFN
Win Source Part Number 059840-NC7NP14L8X
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian NC7NP14L8X CAD Model

Description

The Fairchild/ON Semiconductor 059840-NC7NP14L8X is a 3-circuit Schmitt trigger inverter logic type integrated circuit.

  • Inputs: 3
  • Package: 8-MicroPak
  • Current-Output High/Low: 2.6mA
  • Max Propagation Delay @ V, Max CL: 9.2ns @ 3.3V, 30pF
  • Current-Quiescent (Max): 0.9μA
  • Logic Level-Low: 0.1V to 0.6V
  • Logic Level-High: 0.6V to 2.6V
  • Temperature Range: -40°C to 85°C
  • Supply Voltage-Operating: 0.9V to 3.6V
