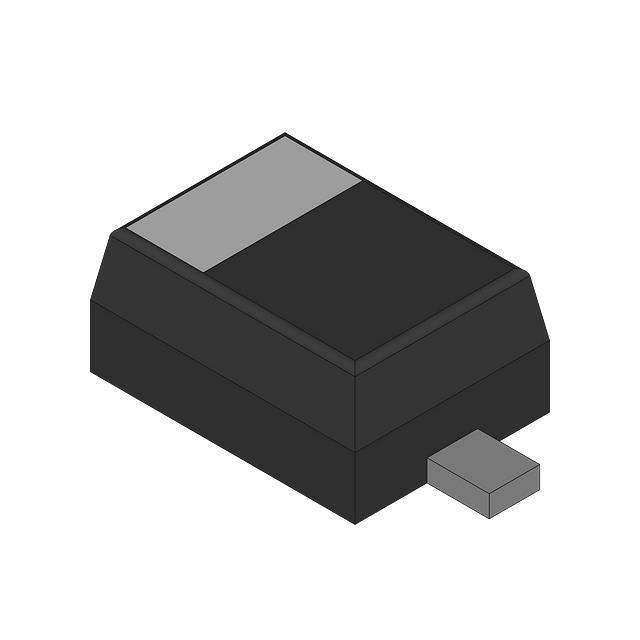

MMSZ5251B

Name: MMSZ5251B
Brand: Fairchild/ON Semiconductor
SKU: 236621
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MMSZ5251B
Manufacturer	Fairchild/ON Semiconductor
Catalog	Diodes - Zener - Single
Description	Zener Diode Single 22V 5% 29Ohm 500mW Automotive 2-Pin SOD-123 T/R / DIODE ZENER 22V 500MW SOD123
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Fairchild Semiconductor
Standard Package	1
Category	Discrete Semiconductor Products
Family	Diodes - Zener - Single
Packaging	Reel
Voltage - Zener (Nom) (Vz)	22V
Tolerance	±5%
Power - Max	500mW
Impedance (Max) (Zzt)	29 Ohm
Current - Reverse Leakage @ Vr	100nA @ 17V
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Operating Temperature Range	-55°C ~ 150°C
Mounting Style	SMD/SMT
Package	SOD-123
Manufacturer Device Package	SOD-123
Win Source Part Number	059248-MMSZ5251B
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	MMSZ5251B
Introduction Date	July 15, 1996
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian MMSZ5251B CAD Model

Alternative Products

Description

The Fairchild Semiconductor 059248-MMSZ5251B is a surface-mount zener diode with a voltage rating of 22V and a maximum power dissipation of 500mW.

Forward Voltage: 900mV @ 10mA
Reverse Leakage Current: 100nA @ 17V
Zener Impedance: 29 Ohm
Tolerance: ±5%
Package: SOD-123
Operating Temperature Range: -55°C to 150°C
Product Category: Discrete Semiconductor Products
